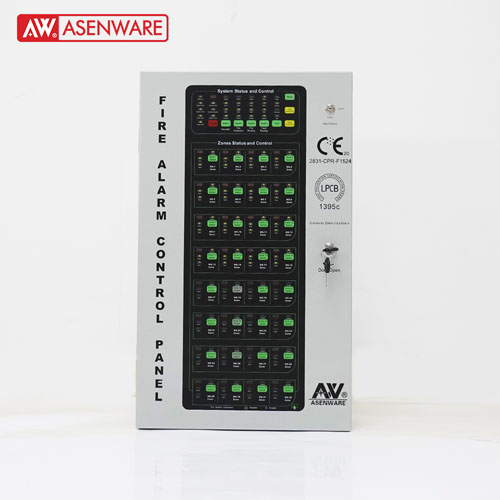

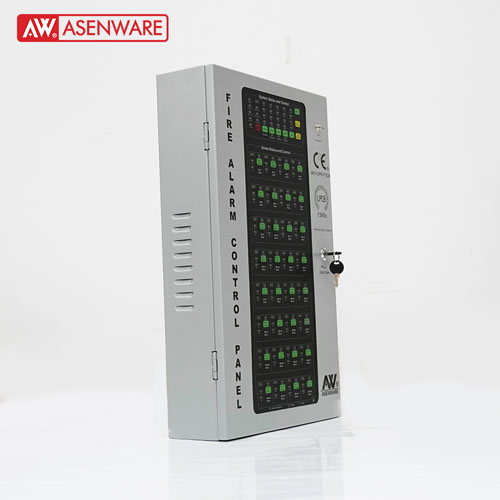

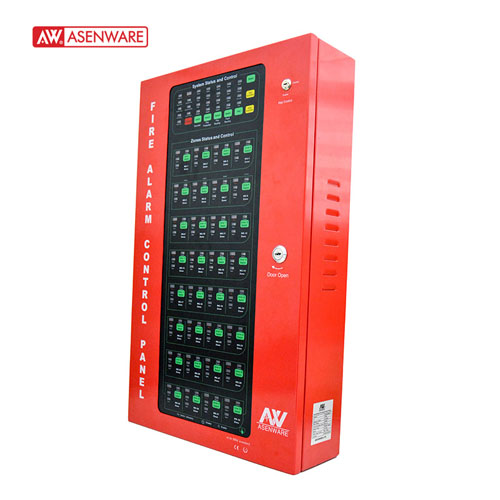

Tərcümə tərəfindən hazırlanıb12-32 Zone conventional fire alarm panel is designed based on EN54 part 2＆4 standard.
| TEM | 4-32 Zone panel |
| Model No. | AW-CFP2166-04-32 |
| Mains supply voltage | 110VAC or 240VAC |
| Internal power supply | 27.2VDC |
| Total output current limited | 3A@240VAC |
| Batteries (Default Configuration) | 12V2AH*2-24VDC in Total |
| End of Line device | 6.8k Q2,5% tolerance, 0.25W (color code-blue, grey, red, gold) |
| End of line resistor value | 6.8k Q2,5% tolerance, 0.25W (color code-blue, grey, red, gold) |
| Dimensions(mm) | 362*565*124mm |
| Weight (without batteries | 8kg |
| Weight (with batteries) | 12.5kg |
| Environmental | Class A temperature range: -5 to 50°C Humidity: 5 to 95% RH, non-condensing |
