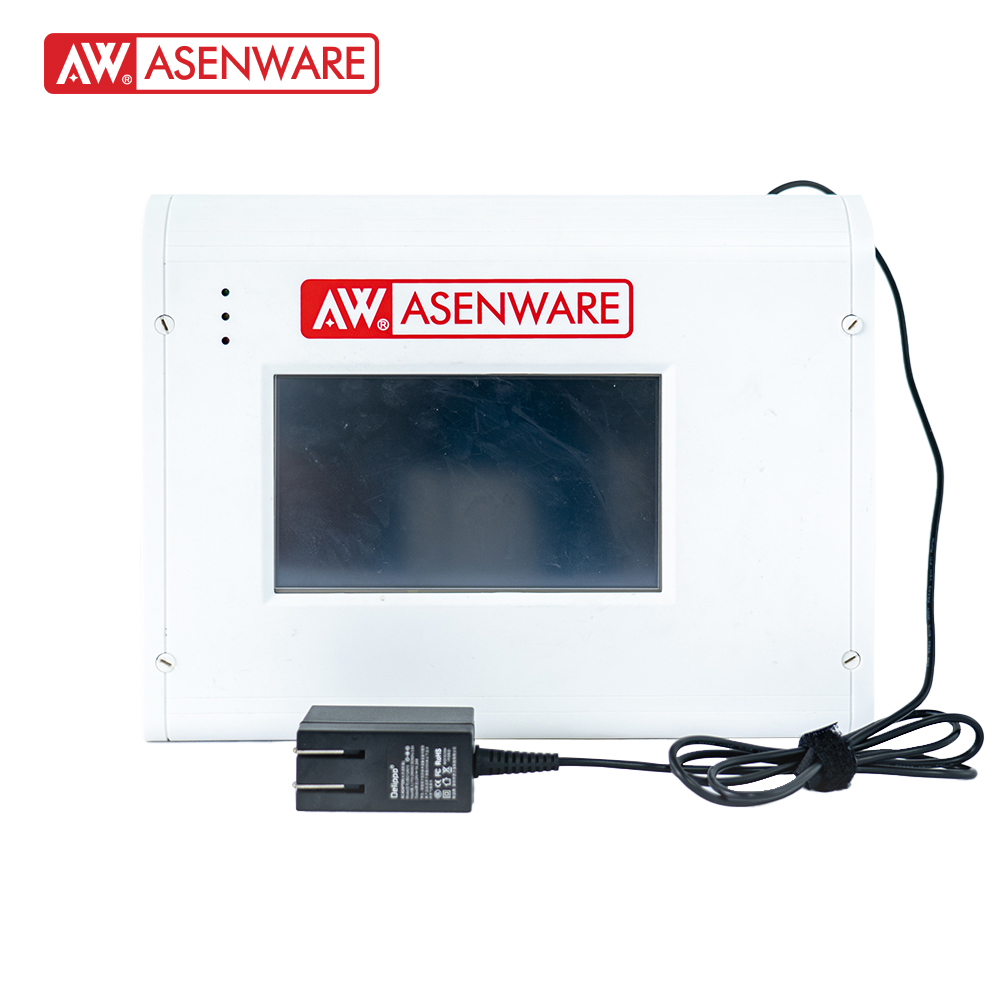

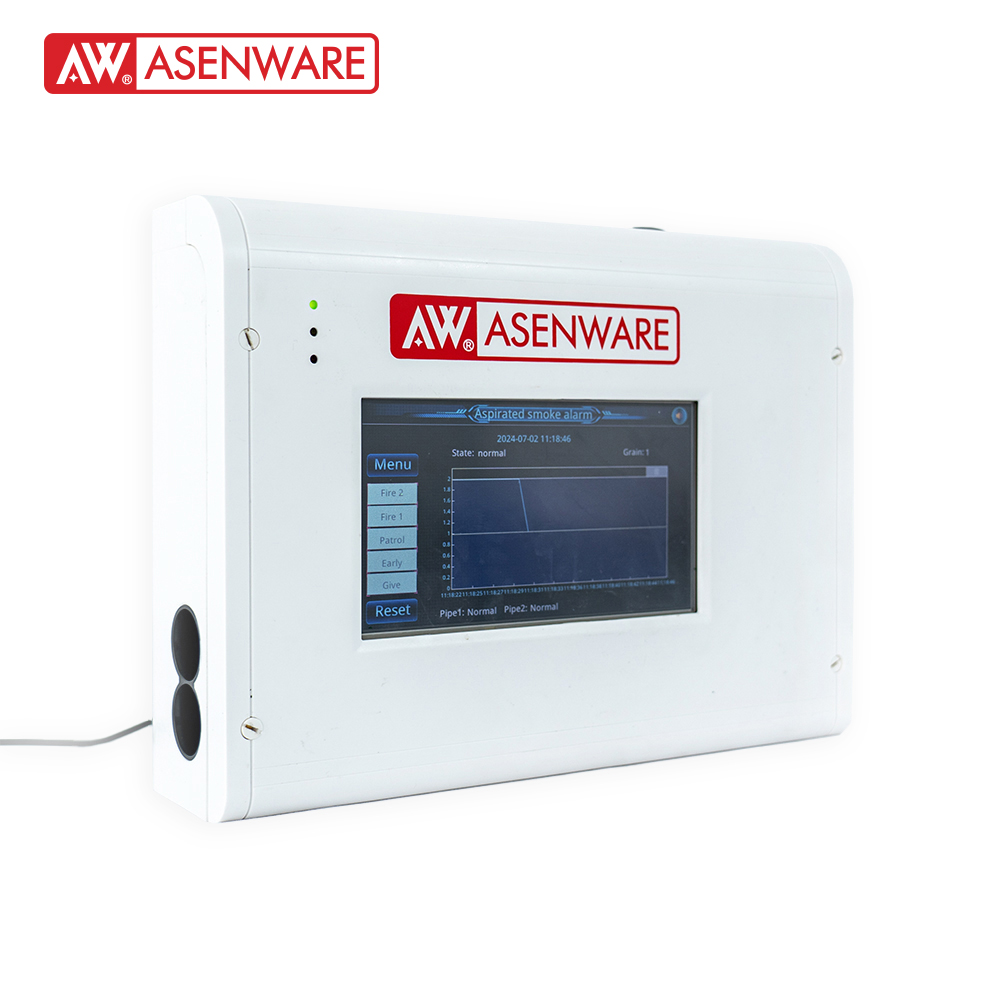

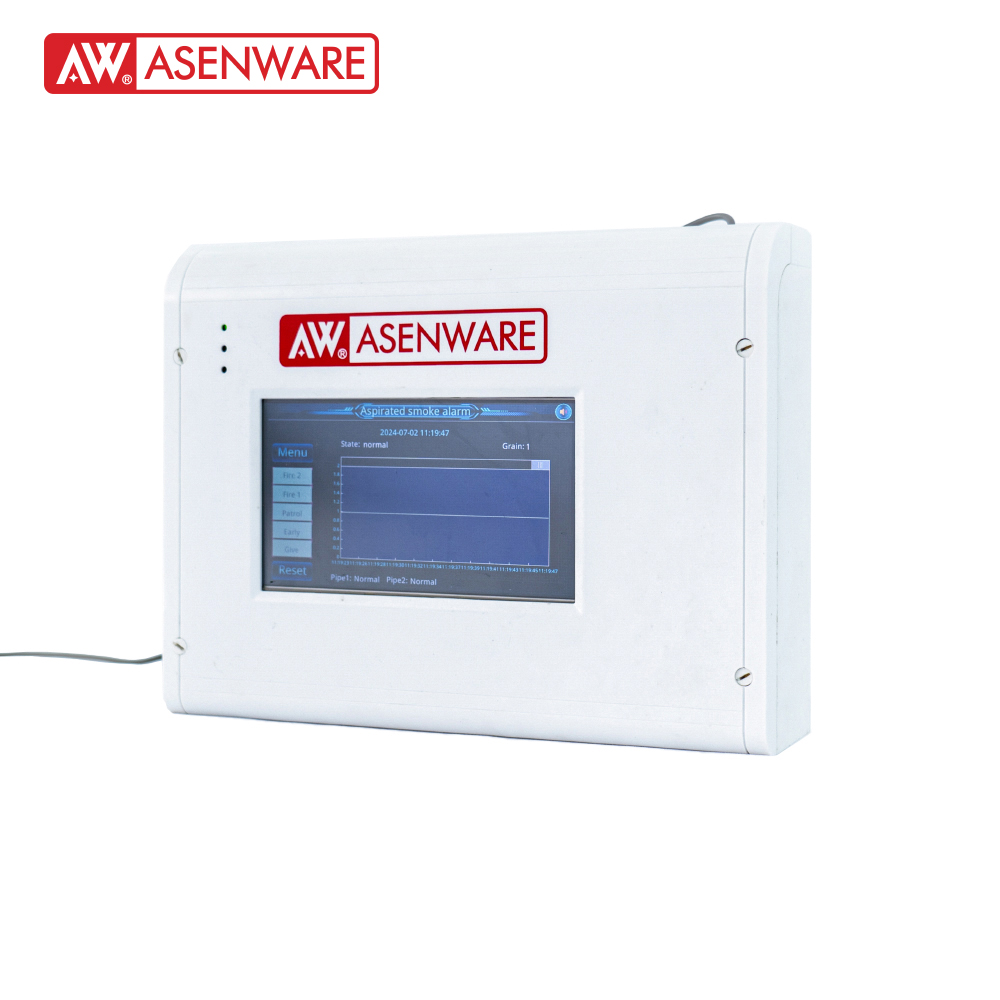

The 2/4 zone Aspirating smoke detectors can actively sample and analyze the number of smoke particles in air samples, and upload the data to the background
system in a timely manner for users to view and take correct measures.
The 2/4 zone Aspirating smoke detectors has a wide range of applications and is suitable for the following occasions:
Large spaces: airports, rail transit, stadiums, warehousing and logistics, etc.
Narrow spaces: communication room cabinets, inside power system equipment, Internet data centers, etc.
Clean places: electronics, pharmaceuticals, large hospitals, financial institutions, key laboratories, etc.
Non-clean places: thermal power plants, cable trenches, paper mills, mines and traffic tunnels, etc.
Technical parameter
| Input Voltage |
Rated operating voltage is 24Vdc (operating voltage: 20.4~26. 4Vdc) |
| Vaximum power |
30W |
| Protection area |
The protection area of a single hole is 20 m2, and 100 holes ofthe whole machine can reach 2000 m2 |
| Analysis Chamber |
Laser cavity l |
| Sampletube size |
Outer diameter 25mm, inner diameter 2lmm |
| Sampling Holes |
26 single tubes, 104 quad tubes |
| Airflow monitor |
3 Level |
| Alarm level |
5 levels |
| Display |
7-inch touch screen |
| Relay output |
3 pairs |
