Description

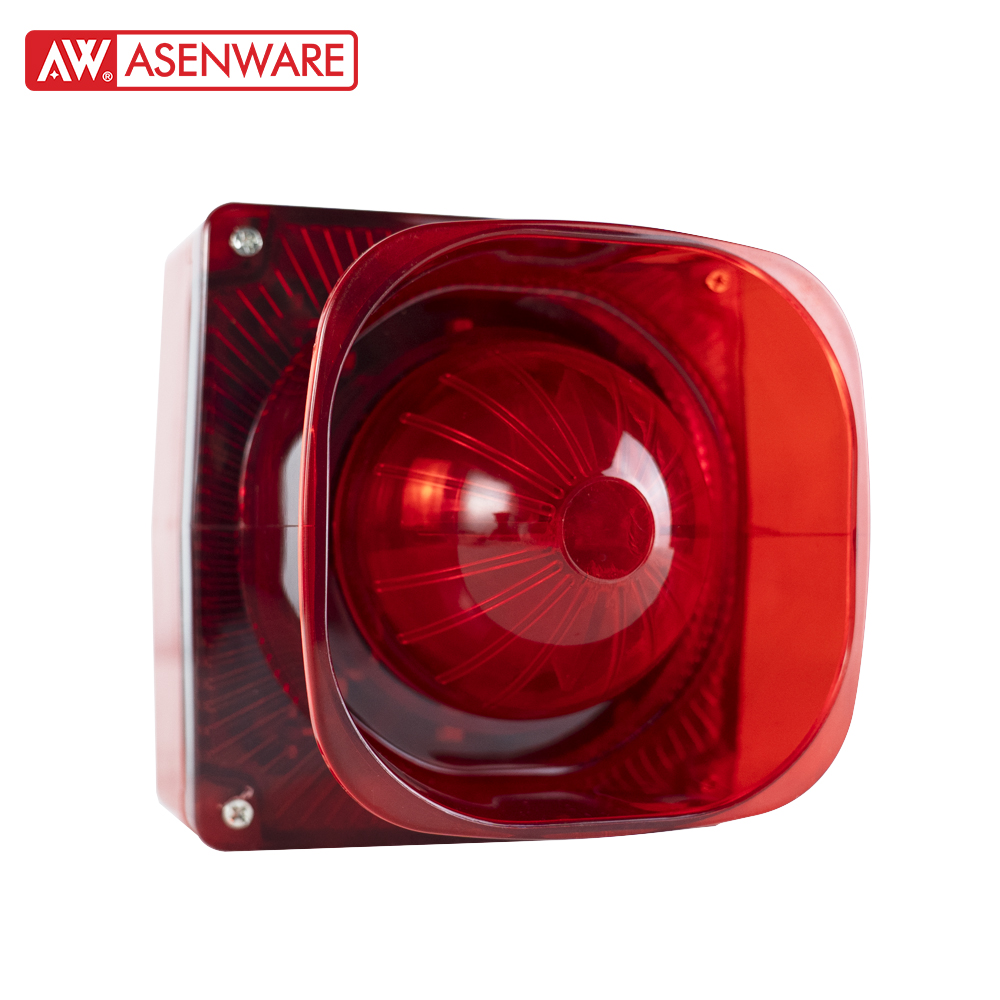

The AW-CSS2166-4 is a conventional fire strobe and sounder alarm device.The product features a new folded horn design, LED technology and advanced optics, providing outstanding sound output and supplementary light indication at very low current draw. Description The AW-CSS2166-4 is a conventional fire strobe and sounder alarm device.The product features a new folded horn design, LED technology and advanced optics, providing outstanding sound output and supplementary light indication at very low current draw. This device delivers outstanding quality, reliability and extended operational life, making it the ideal choice for a wide range of applications. Features 1. Equipment operation stable &reliable 2. Easy to install & wire 3. Two kinds of Sounder and strobe signal 4. Adjustable SPL 5. 8 Sounder Alarm models Technical Specification Model AW-CSS2166-4 Operating Voltage 220±10% VAC 12～28 VDC Maximum Alarm Current ≤110mA @ 220 VAC ≤110mA @ 24 VDC Sounder Pressure Level 95 ~ 115dB (Adjustable) @ 1m Flash Period 120 times/min Wiring(220±10% VAC ) Connect AC power (L,N terminal) Wiring(12～28 VDC) The promise of two bus system(BELL+, BELL -) Environmental Temperature range: -10 to 50°C (14~122°F) Humidity: 5 to 95% RH, non-condensing Materials and Colors ABS, Red Size（L*W*H） 128* 122* 100 mm Mating Host Asenware Conventional and AddresssablePanel Net Weight 320 g

Technical Specifications

Parameter	Specification
Model	AW-CSS2166-4
Operating Voltage	220±10% VAC
Maximum Alarm Current	≤110mA @ 220 VAC
Sounder Pressure Level	95 ~ 115dB (Adjustable) @ 1m
Flash Period	120 times/min
Wiring(220±10% VAC )	Connect AC power (L,N terminal)
Wiring(12～28 VDC)	The promise of two bus system(BELL+, BELL -)
Environmental	Temperature range: -10 to 50°C (14~122°F)
Materials and Colors	ABS, Red
Size（LWH）	128* 122* 100 mm
Mating Host	Asenware Conventional and AddresssablePanel
Net Weight	320 g
