Home > Products > 4 wire Conventional fire alarm 24V heat detector with relay
4 wire Conventional fire alarm 24V heat detector with relay
4 wire Conventional fire alarm 24V heat detector with relay 4 wire Conventional fire alarm 24V heat detector with relay 4 wire Conventional fire alarm 24V heat detector with relay 4 wire Conventional fire alarm 24V heat detector with relay
  • 4 wire Conventional fire alarm 24V heat detector with relay
  • 4 wire Conventional fire alarm 24V heat detector with relay

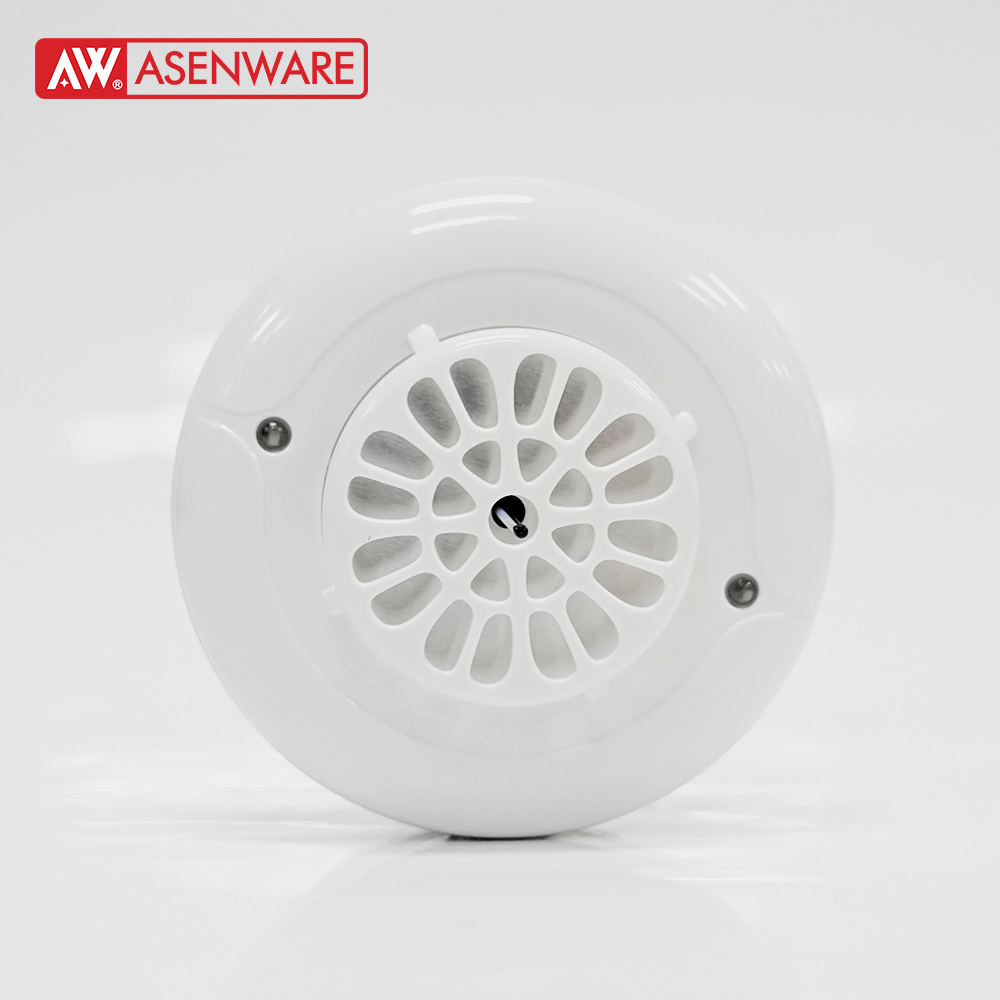

4 wire Conventional fire alarm 24V heat detector with relay

Item No.: AW-CTD382-4W
The AW-CTD382-4W 4 wire Conventional fire alarm heat detector 24VDc with relay uses thermal component to detect the temperature changing in the environment.
Add to Inquiry
Description
Description

The AW-CTD382-4W 4 wire Conventional fire alarm heat detector 24VDc with relay uses thermal component to detect the temperature changing in the environment. Description The AW-CTD382-4W 4 wire Conventional fire alarm heat detector 24VDc with relay uses thermal component to detect the temperature changing in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value or/and the temperature achieved fixed temperature. It is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturer. Features 1.Surface mounting 2. LED indicator 3.Complete functional test with every activation 4. Meets all requirements of latest EN54-5:2000 Technical Specification Operating Voltage 9～24VDC or 24～60VDC Operating current(@ 24VDC) NO Standby current≤120uA, Alarmcurrent≤20mA NC Standby current≤12mA, Alarmcurrent≤5mA Application For indoor use only Wiring Terminal 6: DC24V Terminal 5: DC24V Terminal 3: Alarm output Terminal 2: Alarmoutput Fix Temperature Alarm 57℃(135°F) A2R Rate of Rise Alarm 7.1℃/5s A2R Environmental Temperature range: -10 to 50°C(14~122°F) Humidity: 5 to 95% RH, non-condensing

Technical Specifications

ParameterSpecification
Operating Voltage9～24VDC or 24～60VDC
Operating current(@ 24VDC)NO Standby current≤120uA, Alarmcurrent≤20mA
ApplicationFor indoor use only
WiringTerminal 6: DC24V Terminal 5: DC24V
Fix Temperature Alarm57℃(135°F) A2R
Rate of Rise Alarm7.1℃/5s A2R
EnvironmentalTemperature range: -10 to 50°C(14~122°F)
