Home > Products > 4 wire Conventional fire alarm 60v heat detector with relay

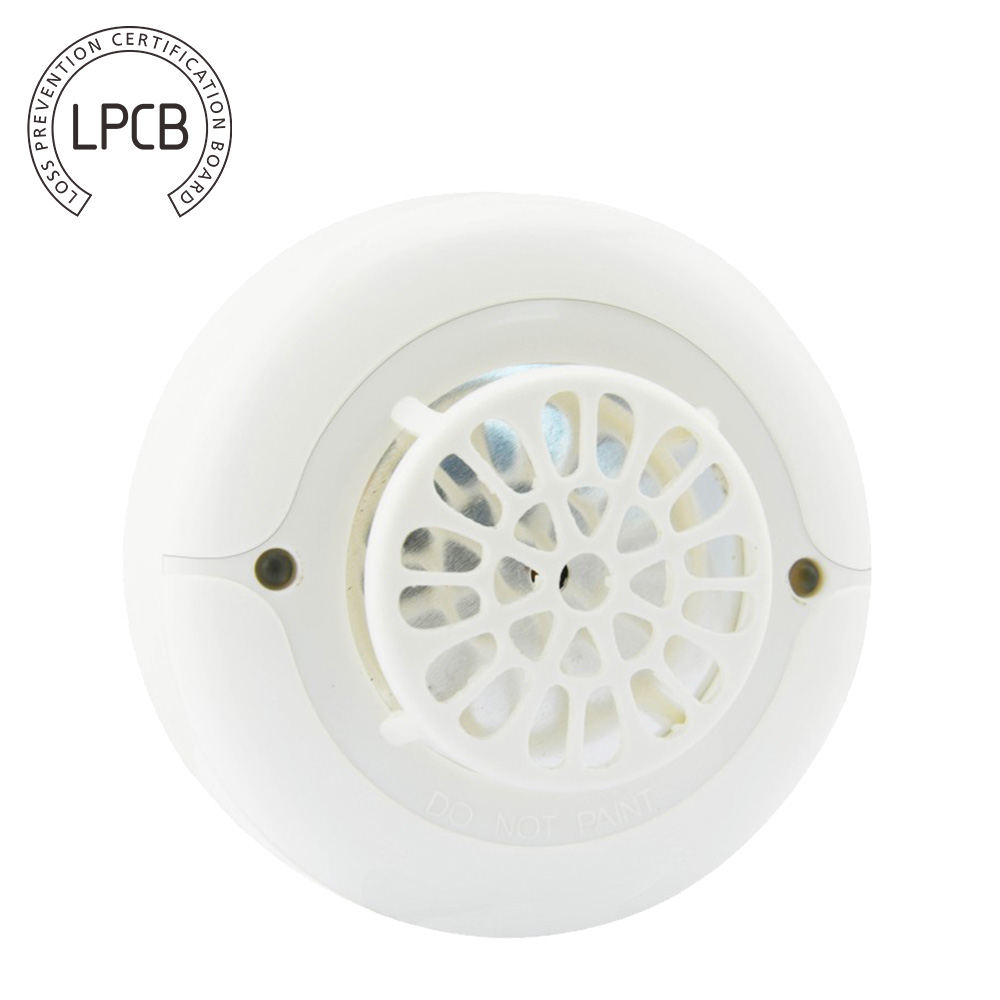

4 wire Conventional fire alarm 60v heat detector with relay
4 wire Conventional fire alarm 60v heat detector with relay 4 wire Conventional fire alarm 60v heat detector with relay 4 wire Conventional fire alarm 60v heat detector with relay 4 wire Conventional fire alarm 60v heat detector with relay
  • 4 wire Conventional fire alarm 60v heat detector with relay
  • 4 wire Conventional fire alarm 60v heat detector with relay

4 wire Conventional fire alarm 60v heat detector with relay

Item No.: AW-CTD382-4W 60V
The AW-CTD382-4 wire Conventional fire alarm heat detector 60VDc with relay uses thermal component to detect the temperature changing in the environment.
Add to Inquiry
Description
Description

The AW-CTD382-4 wire Conventional fire alarm heat detector 60VDc with relay uses thermal component to detect the temperature changing in the environment. Description The AW-CTD382-4 wire Conventional fire alarm heat detector 60VDc with relay uses thermal component to detect the temperature changing in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rise temperature value or/and the temperature achieved fixed temperature.It is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturer. Features 1.Surface mounting 2. LED indicator 3. Complete functional test with every activation 4. Meets all requirements of latest EN54-5:2017 Technical Specification Application For indoor use only Wiring Terminal 6: DC Input Terminal 5: DC Input Terminal 3: Alarm output Terminal 2: Alarm output Fix Temperature Alarm 57℃(135°F) A2R Rate of Rise Alarm 7.1℃/5s A2R Environmental Class A temperature range: -10 to 50°C (14~122°F) Humidity: 5 to 95% RH, non-condensing Alarm relay output capacity 100mA(Max) @60VDC( for resistive load) Main Voltage 9～24VDC or 24～60VDC

Technical Specifications

ParameterSpecification
ApplicationFor indoor use only
WiringTerminal 6: DC Input Terminal 5: DC Input
Fix Temperature Alarm57℃(135°F) A2R
Rate of Rise Alarm7.1℃/5s A2R
EnvironmentalClass A temperature range: -10 to 50°C (14~122°F)
Alarm relay output capacity100mA(Max) @60VDC( for resistive load)
Main Voltage9～24VDC or 24～60VDC
