4 wire Conventional fire alarm 48V smoke detector with relay
4 wire Conventional fire alarm 48V smoke detector with relay 4 wire Conventional fire alarm 48V smoke detector with relay 4 wire Conventional fire alarm 48V smoke detector with relay 4 wire Conventional fire alarm 48V smoke detector with relay
  • 4 wire Conventional fire alarm 48V smoke detector with relay
  • 4 wire Conventional fire alarm 48V smoke detector with relay

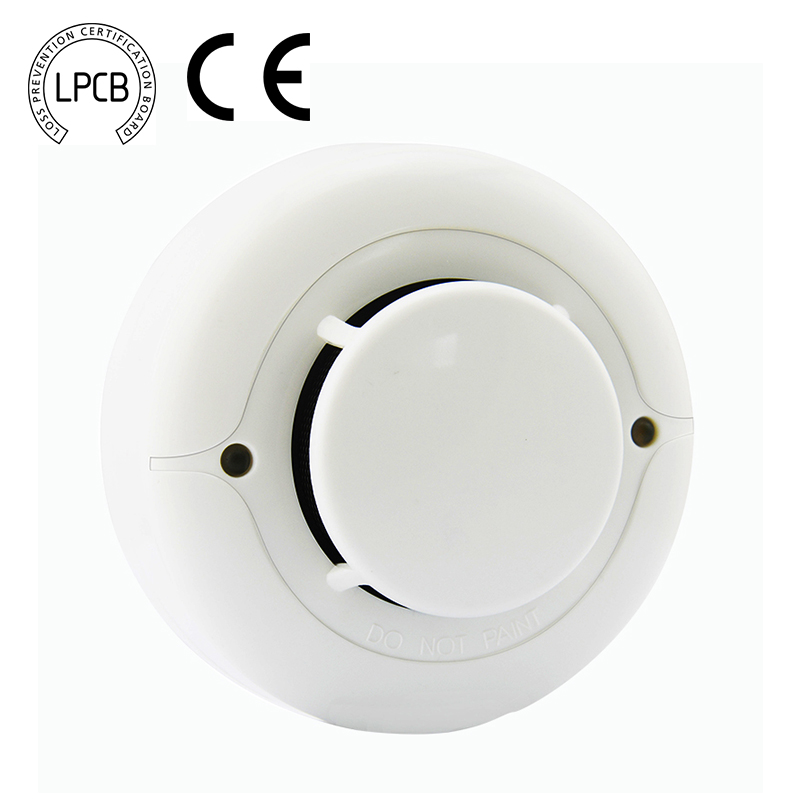

4 wire Conventional fire alarm 48V smoke detector with relay

Item No.: AW-CSD381 4w
The AW-CSD381-4W 4 wire Conventional fire alarm smoke detector 48VDc with relay uses a state of the art optical sensing chamber.
Add to Inquiry
Description
Description

The AW-CSD381-4W 4 wire Conventional fire alarm smoke detector 48VDc with relay uses a state of the art optical sensing chamber. Description The AW-CSD381-4W 4 wire Conventional fire alarm smoke detector 48VDc with relay uses a state of the art optical sensing chamber. This detector is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturers. Features 1.Surface mounting 2. LED indicator 3.Complete functional test with every activation 4. Meets all requirements of latest EN54-7:2001 Technical Specification Main Voltage 9～24VDC or 24～60VDC Operating current(@ 60VDC) NO Standby current≤1.2mA, Alarmcurrent≤8mA NC Standby current≤5mA, Alarmcurrent≤4mA Application For indoor use only Wiring Terminal 6: DC Input Terminal 5: DCInput Terminal 3: Alarm output Terminal 2: Alarm output Smoke Alarm Sensitivity 0.18 to 0.3 dB/m Environmental Class A temperature range: -10 to 50°C(14~122°F) Humidity: 5 to 95% RH, non-condensing Protection class IP30

Technical Specifications

ParameterSpecification
Main Voltage9～24VDC or 24～60VDC
Operating current(@ 60VDC)NO Standby current≤1.2mA, Alarmcurrent≤8mA
ApplicationFor indoor use only
WiringTerminal 6: DC Input Terminal 5: DCInput
Smoke Alarm Sensitivity0.18 to 0.3 dB/m
EnvironmentalClass A temperature range: -10 to 50°C(14~122°F)
Protection classIP30
