Home > Products > 4 wire Conventional fire alarm 24V smoke and heat detector with relay

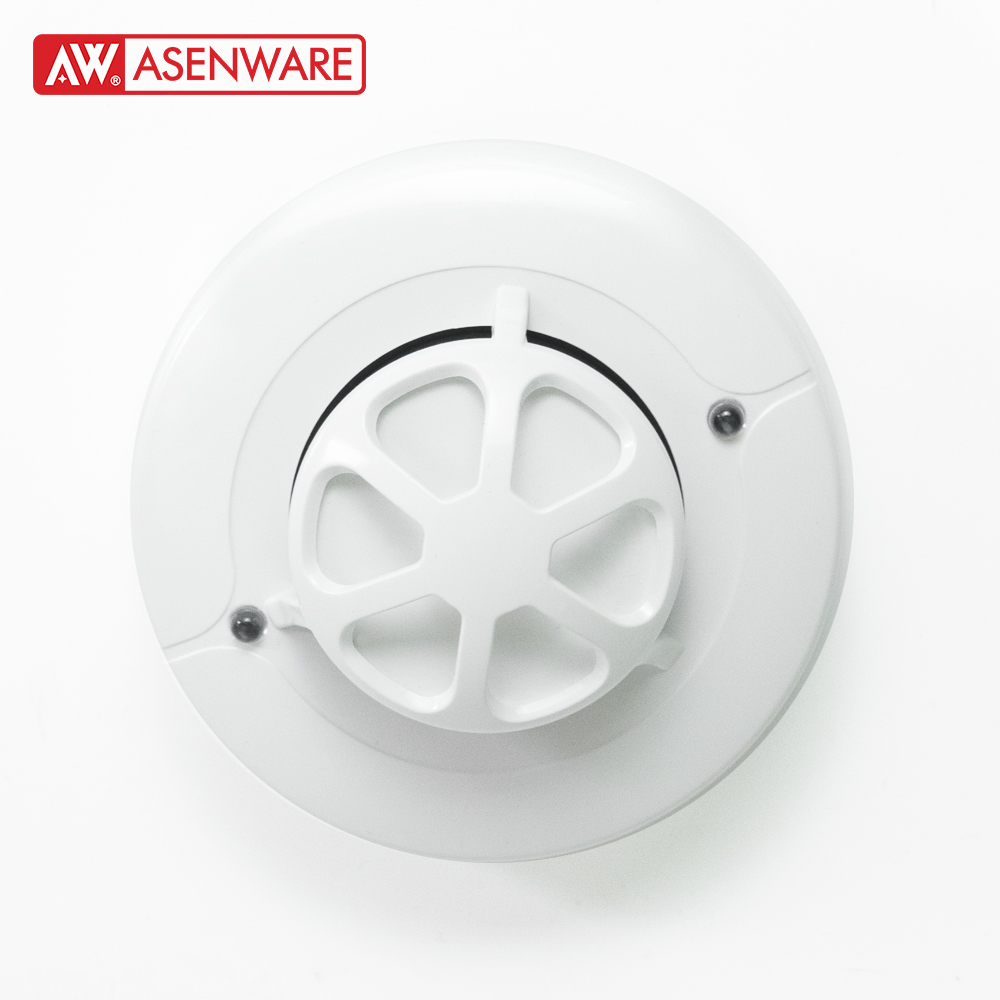

4 wire Conventional fire alarm 24V smoke and heat detector with relay
4 wire Conventional fire alarm 24V smoke and heat detector with relay
  • 4 wire Conventional fire alarm 24V smoke and heat detector with relay

4 wire Conventional fire alarm 24V smoke and heat detector with relay

Item No.: AW-D138C-4W
AW-D138C-4W is a 4 wire Conventional fire alarm smoke and heat detector 24VDc with relay. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire.
Add to Inquiry
Description
Description

AW-D138C-4W is a 4 wire Conventional fire alarm smoke and heat detector 24VDc with relay. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire. Description AW-D138C-4W is a 4 wire Conventional fire alarm smoke and heat detector 24VDc with relay. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire.It is designed to provide open area protection. Features 1. Low Standby current for continuous monitoring 2. Relay output 3. Dual LED design provides 360° viewing angle 4. Meet requirement of EN54-5:2017 & EN54-7:2018 Technical Specification Operating voltage 9~28VDC @ Zone Operating current(@Zone 24VDC) NO Standby current≤120uA, Alarmcurrent<15mA NC Standby current≤15mA, Alarmcurrent<5mA Application For indoor use only Smoke alarm sensitivity 0.18~0.3dB/m Fixed temperature alarm 57℃(135°F) A2R Alarm relay output capacity 500mA @DC30V Environmental Temperature range: -10~50°C (14~122°F) Humidity: 5 to 95% RH, non-condensing

Technical Specifications

ParameterSpecification
Operating voltage9~28VDC @ Zone
Operating current(@Zone 24VDC)NO Standby current≤120uA, Alarmcurrent<15mA
ApplicationFor indoor use only
Smoke alarm sensitivity0.18~0.3dB/m
Fixed temperature alarm57℃(135°F) A2R
Alarm relay output capacity500mA @DC30V
EnvironmentalTemperature range: -10~50°C (14~122°F)
