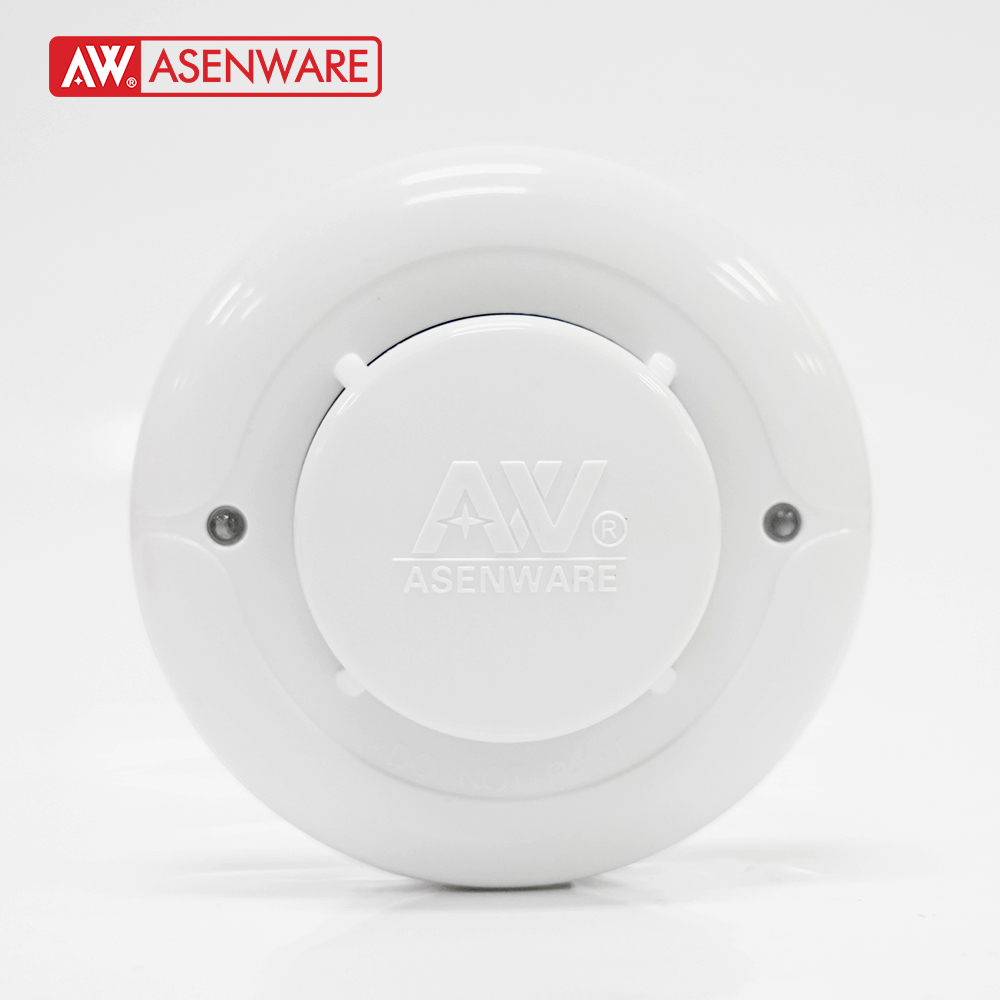

4 wire Conventional fire alarm 24V smoke detector with relay

Home > Products > 4 wire Conventional fire alarm 24V smoke detector with relay

Description

The 4 wire Conventional fire alarm smoke detector 24VDc with relay uses a state of the art optical sensing chamber. Description The AW-CSD381-4W 4 wire Conventional fire alarm smoke detector 24VDc with relay uses a state of the art optical sensing chamber. This detector is designed to provide open area protection and to be used with the AW-CFP2166 conventional fire alarm panel and the panels from other manufacturers. Features 1.Surface mounting 2. LED indicator 3.Complete functional test with every activation 4. Meets all requirements of latest EN54-7:2001 Technical Specification Main Voltage 9～24VDC or 24～60VDC Operating current(@ 24VDC) NO Standby current≤120uA, Alarmcurrent≤20mA NC Standby current≤12mA, Alarmcurrent≤5mA Application For indoor use only Wiring Terminal 6: DC24V Terminal 5: DC24V Terminal 3: Alarm output Terminal 2: Alarmoutput Smoke Alarm Sensitivity 0.18 to 0.3 dB/m Environmental Class A temperature range: -10 to 50°C(14~122°F) Humidity: 5 to 95% RH, non-condensing

Technical Specifications

Parameter	Specification
Main Voltage	9～24VDC or 24～60VDC
Operating current(@ 24VDC)	NO Standby current≤120uA, Alarmcurrent≤20mA
Application	For indoor use only
Wiring	Terminal 6: DC24V Terminal 5: DC24V
Smoke Alarm Sensitivity	0.18 to 0.3 dB/m
Environmental	Class A temperature range: -10 to 50°C(14~122°F)
