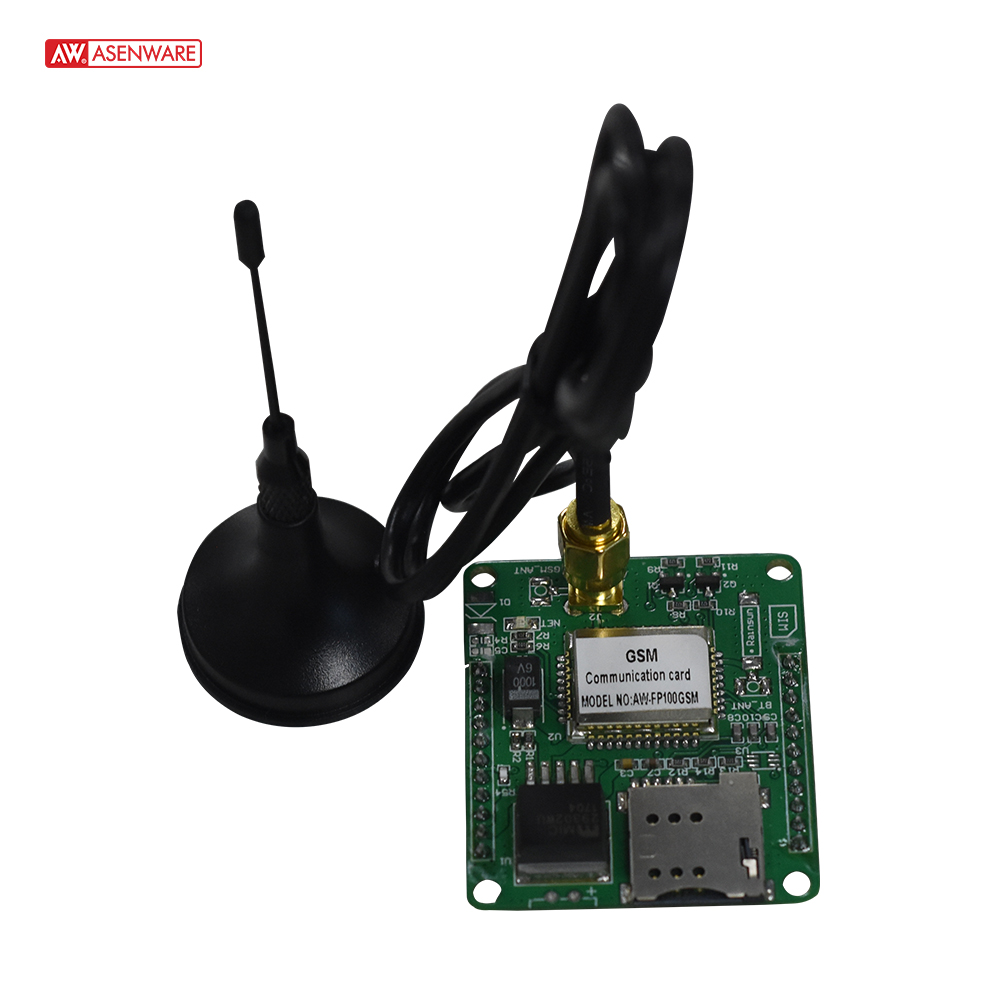

When a fire alarm or fault occurs in the fire alarm system, the 4G GSM module AW-FP100GSM-4G will send this information to the designated person's mobile phone via SMS.The GSM module can connected with Asenware fire alarm control panel ,conventional repeater and AW-GSM200 module.
Features
1.Support 4G network
2.Use Nano SIM Card
3.Use PDU format to send SMS, support multiple languages
4.Use Qualcomm kernel, can be used in most parts of the world
Technical Specification
| Model |
AW-FP100GSM-4G |
| Main Voltage |
5VDC |
| Operating Current(@ sleep mode) |
≤5mA |
| GSM Frequency |
850MHz/900MHz/1800MHz/1900MHz |
| Antenna bandwidth |
0.8GHz-3GHz |
| Antenna gain |
6 dBi |
