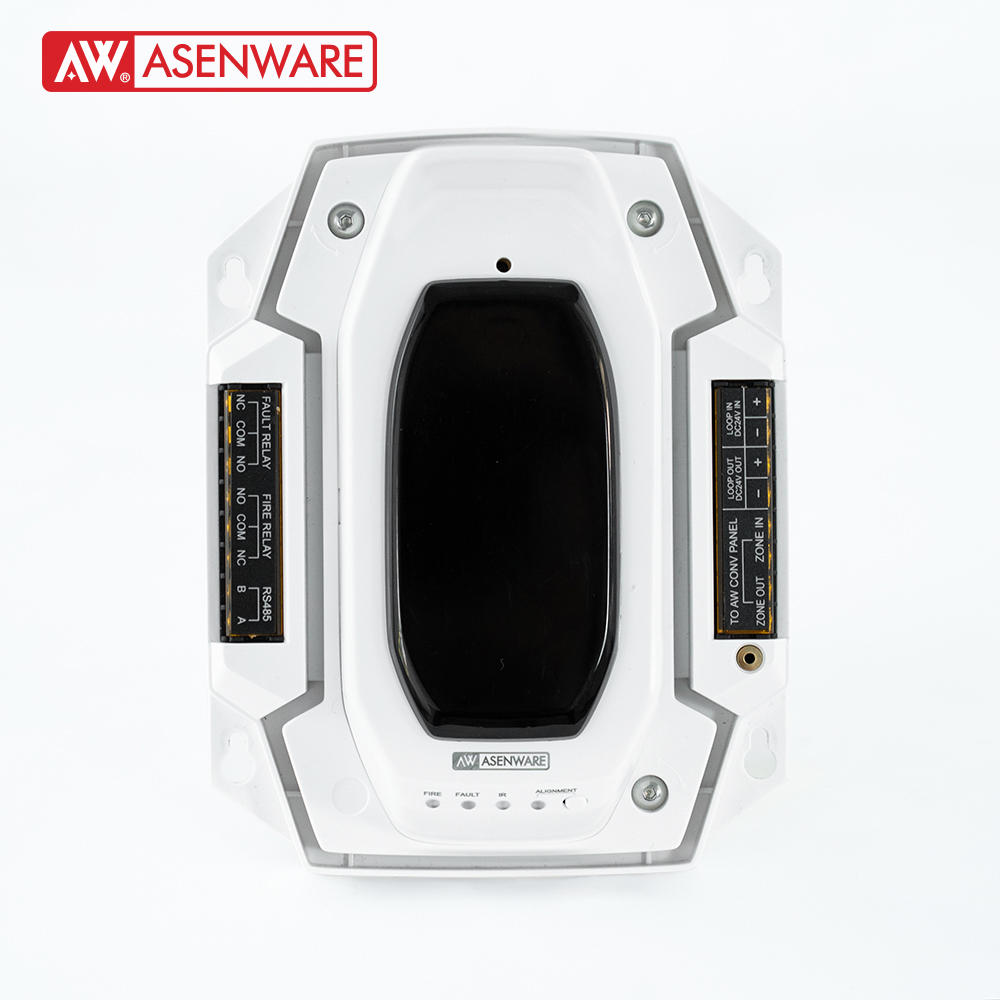

Addressable Optical Beam Smoke Detector

Home > Products > Addressable Optical Beam Smoke Detector

Description

Description Its advanced intelligent algorithms can ensure reliable operation in various complex places, non-false alarms or missed alarms, and simplify installation. Just turn on the laser and adjust it to the reflective board to complete the focus and calibration. Features 1. High-transparency telescope structure 2. Easy debugging, accurate and fast alignment, intelligent and fast calibration; 3.High quality, durability and highly sensitive sensor 4. Automatic compensation, improves the ability to resist dust and vibration interference and reduces false alarms. 5.Optical distance can reach to maximum 160m, minimum 5m 6.Meets all requirements of the latest EN54-12 standard Technical Specification Main Voltage LOOP 24V or DC 12-24V Working Current static current ≤10 mA@DC 24V, alarm current ≤15 mA@DC 24V Optical Detection Distance 5 -160m Standard Number Ref EN54-12 Material and Color ABS, white Environmental Conditions Temperature range: -10 to 50°C (14~122°F) Humidity: ≤95% RH, non-condensing

Technical Specifications

Parameter	Specification
Main Voltage	LOOP 24V or DC 12-24V
Working Current	static current ≤10 mA@DC 24V, alarm current ≤15 mA@DC 24V
Optical Detection Distance	5 -160m
Standard Number Ref	EN54-12
Material and Color	ABS, white
Environmental Conditions	Temperature range: -10 to 50°C (14~122°F)
