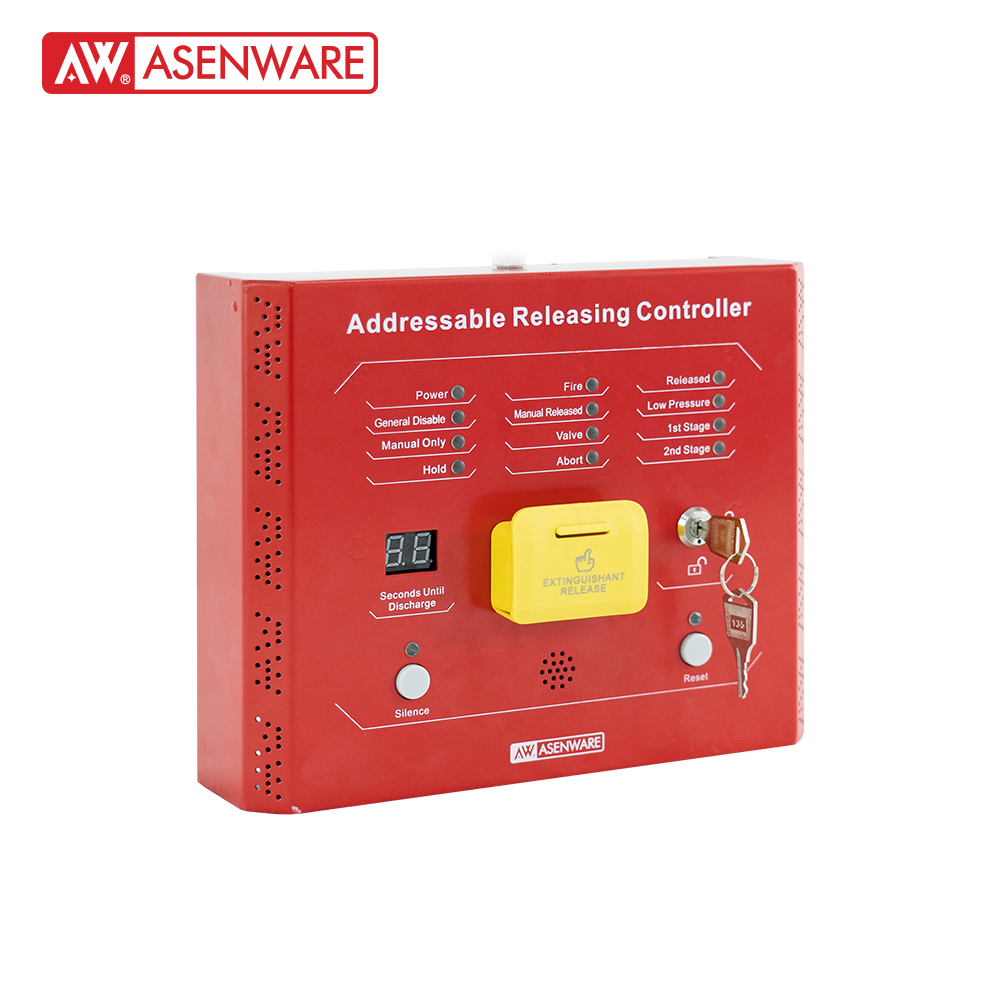

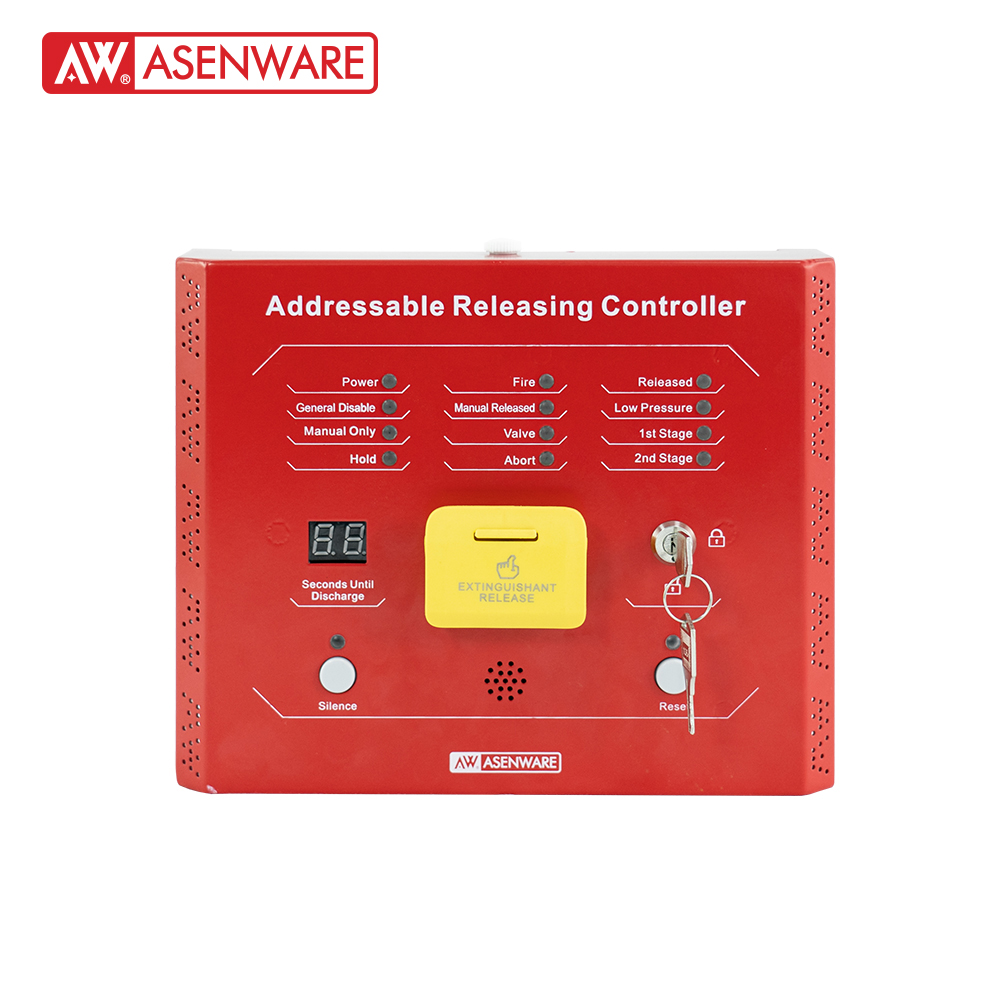

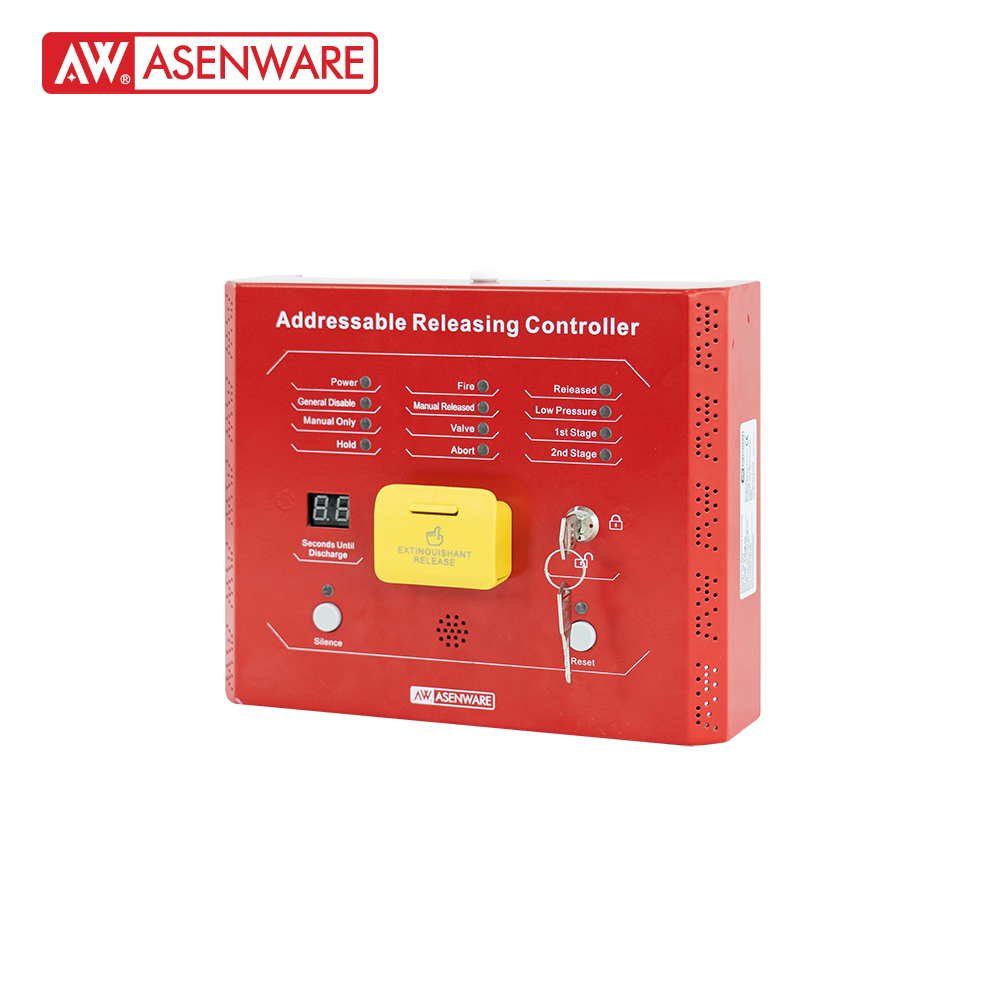

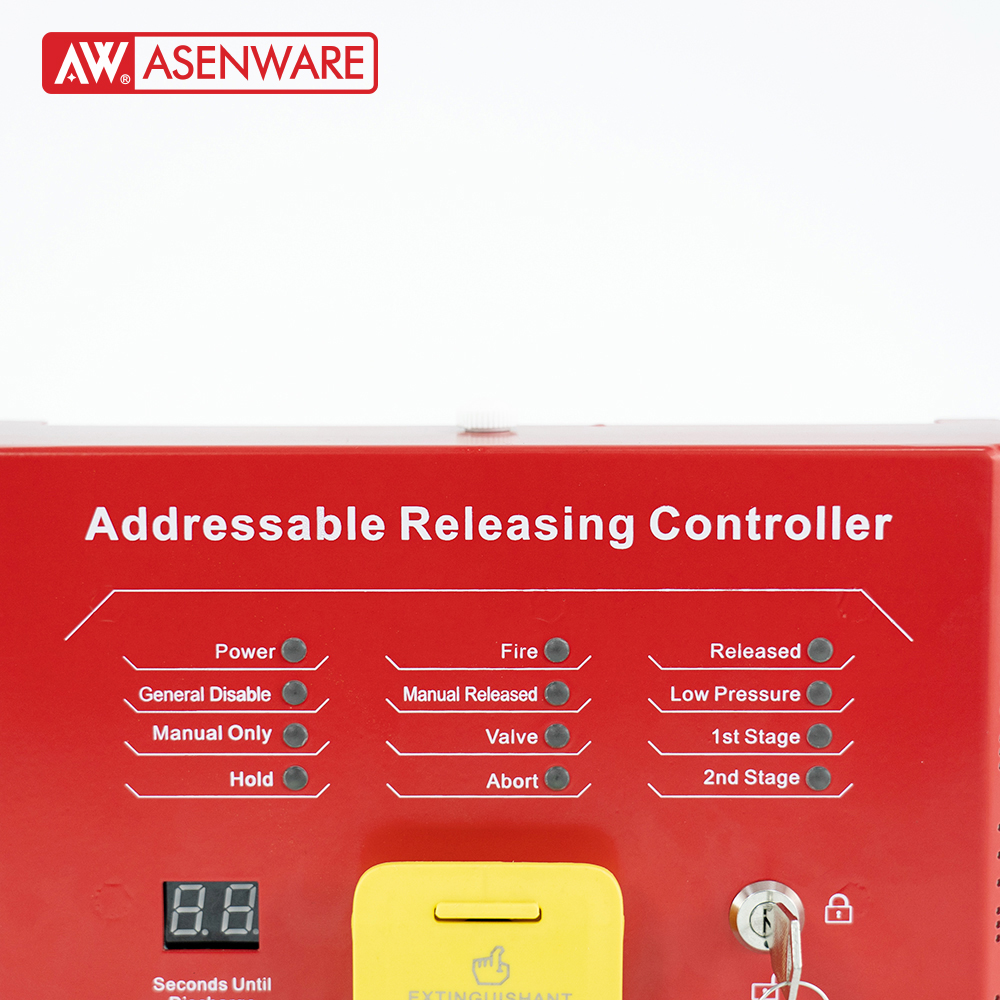

The AW-D214 is a addressable releasing controller, designed to connect to the AW-FP200 addressable panel. Upon receiving a fire alarm status from the AW-FP200, it will automatically trigger gas release. The controller can also be manually triggered via its push-button. It enables remote silencing and resetting of the main control panel (AW-FP200). A single AW-FP200 control panel can support connection to up to 20 independently addressable releasing controller. This controller can be used in FM200, CO2 and other gas fire extinguishing systems.
Features 1.Display various statuses of the AW-D214 controller on the AW-FP200 panel. 2.One AW-D214 connects to one valve. 3.One AW-FP200 can connect up to 20 AW-D214. 4.The addressable releasing controller can be programmed using the AW-PR101L. 5.Press Extinguishant release button to release Fire-extinguishing gas. 6.Permission lock 7.Buzzer indication 8.Press Reset button or silence button to reset or silence the FP200 panel and AW-D214 controller 9.2 wires power bus system
