Home > Products > Addressable Smoke And Heat Detector
Addressable Smoke And Heat Detector
Addressable Smoke And Heat Detector Addressable Smoke And Heat Detector Addressable Smoke And Heat Detector Addressable Smoke And Heat Detector
  • Addressable Smoke And Heat Detector
  • Addressable Smoke And Heat Detector

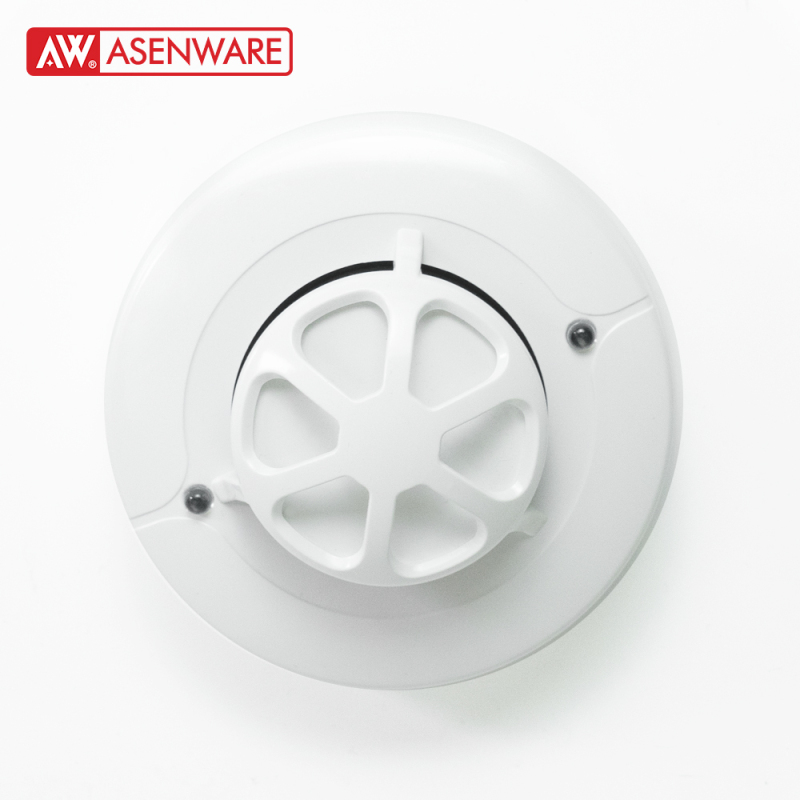

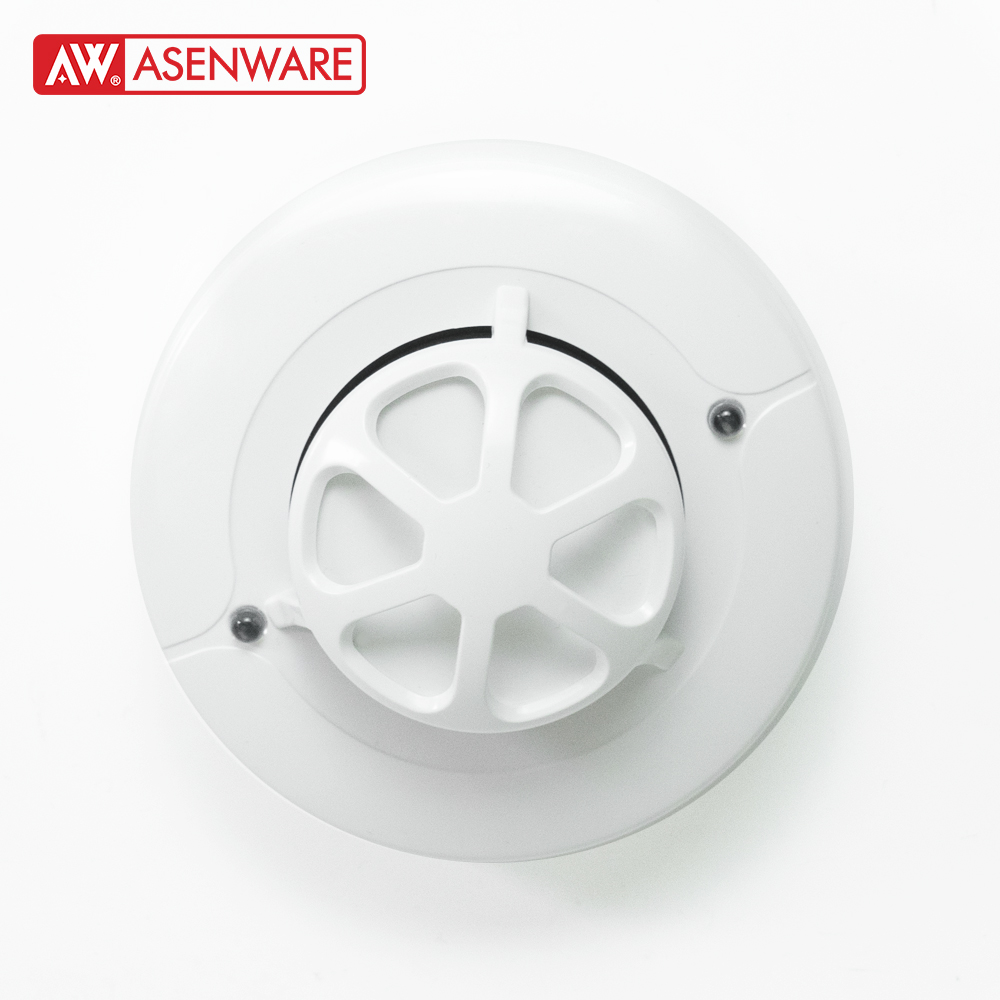

Addressable Smoke And Heat Detector

Item No.: AW-D138
AW-D138 is a smoke with fixed temperature and rate-of-rise heat detector. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire
Add to Inquiry
Description
Description

AW-D138 is a smoke with fixed temperature and rate-of-rise heat detector. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire Description AW-D138 is a smoke with fixed temperature and rate-of-rise heat detector. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire. It is designed to provide open area protection . The red LED on the detector provides a local 360°visible alarm indication. The detector that initiated the alarm condition will have its red LED latched until reset by panel. Features 1. Low Standby current for continuous monitoring 2. Two-wire connection 3. Dual LED design provides 360° viewing angle 4. Meet requirement of EN54-5:2017 & EN54-7:2018 Technical Specification Model AW-D138 Operating voltage 18~28VDC @Loop Operating current(@Loop 24VDC) Monitoring status≤1.5mA, Alarmstatus≤2.5mA@24VDC Application For indoor use only Wiring The promise of two bus system(Loop in, Loopout)Smoke alarm sensitivity 0.18~0.3dB/m Smoke alarm sensitivity 0.18~0.3dB/m Fixed temperature alarm 57℃(135°F) A2R Environmental Temperature range: -10~50°C (14~122°F) Humidity: 5 to 95% RH, non-condensing Materials and colors ABS, White

Technical Specifications

ParameterSpecification
ModelAW-D138
Operating voltage18~28VDC @Loop
Operating current(@Loop 24VDC)Monitoring status≤1.5mA, Alarmstatus≤2.5mA@24VDC
ApplicationFor indoor use only
WiringThe promise of two bus system(Loop in, Loopout)Smoke alarm sensitivity 0.18~0.3dB/m
Smoke alarm sensitivity0.18~0.3dB/m
Fixed temperature alarm57℃(135°F) A2R
EnvironmentalTemperature range: -10~50°C (14~122°F)
Materials and colorsABS, White
