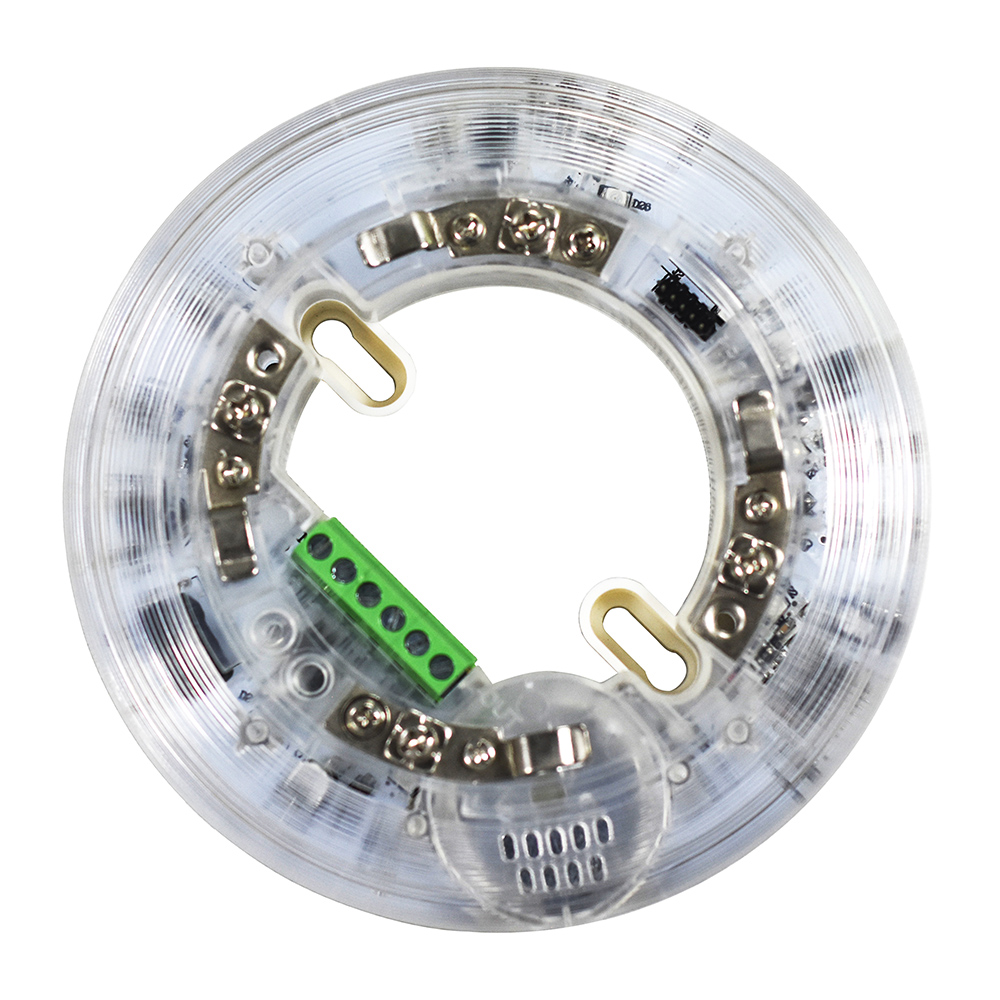

Strobe Sounder Base

Item No.: AW-D120
Asenware Addressable Strobe Sounder Base D120 is an intelligent addressable sounder base for addressable detector (Model A) and conventional detector (Model B), which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel.
Description
Description

Asenware Addressable Strobe Sounder Base D120 is an intelligent addressable sounder base for addressable detector (Model A) and conventional detector (Model B), which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Description Technical Support Asenware AW-D120 is an intelligent addressable sounder base for addressable detector (Model A) and conventional detector(Model B), which can be configured with Asenware AW-FP100 Series Addressable Fire Alarm Control Panel. Each point (device) can be given specific ID, which allows the panel to continuously monitor specific addressable sounder base location (point) and give a visual and audible signal when panel enters fire alarm condition. Addressable Strobe Sounder Base characteristics Loop powered sounder LED indicator Two wire connection (easy to install) Can be used as a detector base Meet all requirement of EN 54-3:2014 Addressable Strobe Sounder Base Technical Parameters Model AW-D120 (A for addressable detector, B for conventional detector) Operating voltage 20~28VDC @Loop Operating current[@Loop 24VDC] Standby statuss7 mA, Alarm statuss60mA with addressable detector; Alarm statuss70mA with conventional detector; Wiring The promise of two bus system (Loop in, Loop out) Alarm SPL ≥65dB @3m Environmental Temperature range: -10~50°C (14~122°F) Humidity: 5 to 95% RH, non-condensing Mating host AW-FP100 series fire alarm control panel Size 130mm*31.2mm Weight About 145g

Technical Specifications

ParameterSpecification
ModelAW-D120 (A for addressable detector, B for conventional detector)
Operating voltage20~28VDC @Loop
Operating current[@Loop 24VDC]Standby statuss7 mA,
Alarm statuss60mA with addressable detector;
Alarm statuss70mA with conventional detector;
WiringThe promise of two bus system (Loop in, Loop out)
Alarm SPL≥65dB @3m
EnvironmentalTemperature range: -10~50°C (14~122°F)
Humidity: 5 to 95% RH, non-condensing
Mating hostAW-FP100 series fire alarm control panel
Size130mm*31.2mm
WeightAbout 145g
