Addressable Input/ Output Module
Addressable Input/ Output Module Addressable Input/ Output Module Addressable Input/ Output Module Addressable Input/ Output Module
  • Addressable Input/ Output Module
  • Addressable Input/ Output Module

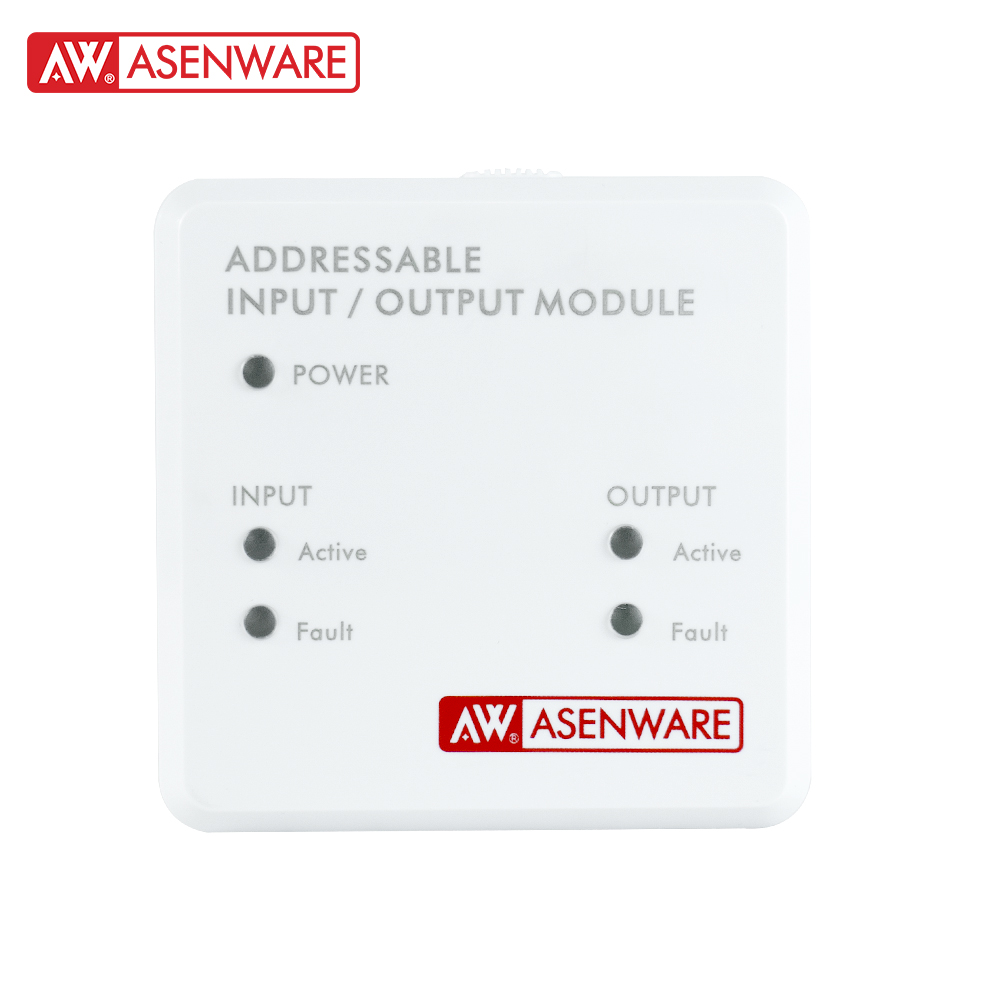

Addressable Input/ Output Module

Item No.: AW-D119
The AW-D119 Input/ Output Module is used with addressable fire alarm control panel.
Add to Inquiry
Description
Description

The AW-D119 Input/ Output Module is used with addressable fire alarm control panel. Description The AW-D119 Input/ Output Module is used with addressable fire alarm control panel. It is mainly used to realize an output control for fire linkage equipment (such as fire alarm bell and strobe horn) and receive the fire signal for the detector which connecting to this module through the input port. And it can receive the feedback signals of the fire linkage equipment so that a judgment on whether or not the fire linkage equipment is operating normally can be done Features 1. Surface mounting 2. LED indicator 3. Complied with EN 54-18 Technical Specification Model AW-D119(For indoor use only) Loop Operating Voltage 20~28VDC (for terminal L1 & L2 Quiescent Current ≤15 mA Activated Current ≤40 mA Relay Contact Rating(Resistive Load) Rated at 0.2A,30VDC (Max) Output Port of Voltage Output 0.2A(Max) @ 24VDC Environmental Temperature range: -10 to 50°C Humidity: 5 to 95% RH, non-condensing Materials and colors SPCC, Red Mating Host Asenware fire alarm control panel

Technical Specifications

ParameterSpecification
ModelAW-D119(For indoor use only)
Loop Operating Voltage20~28VDC (for terminal L1 & L2
Quiescent Current≤15 mA
Activated Current≤40 mA
Relay Contact Rating(Resistive Load)Rated at 0.2A,30VDC (Max)
Output Port of Voltage Output0.2A(Max) @ 24VDC
EnvironmentalTemperature range: -10 to 50°C
Materials and colorsSPCC, Red
Mating HostAsenware fire alarm control panel
