Home > Products > AW-CFP2166-2 TUV Fire Alarm Control Panel

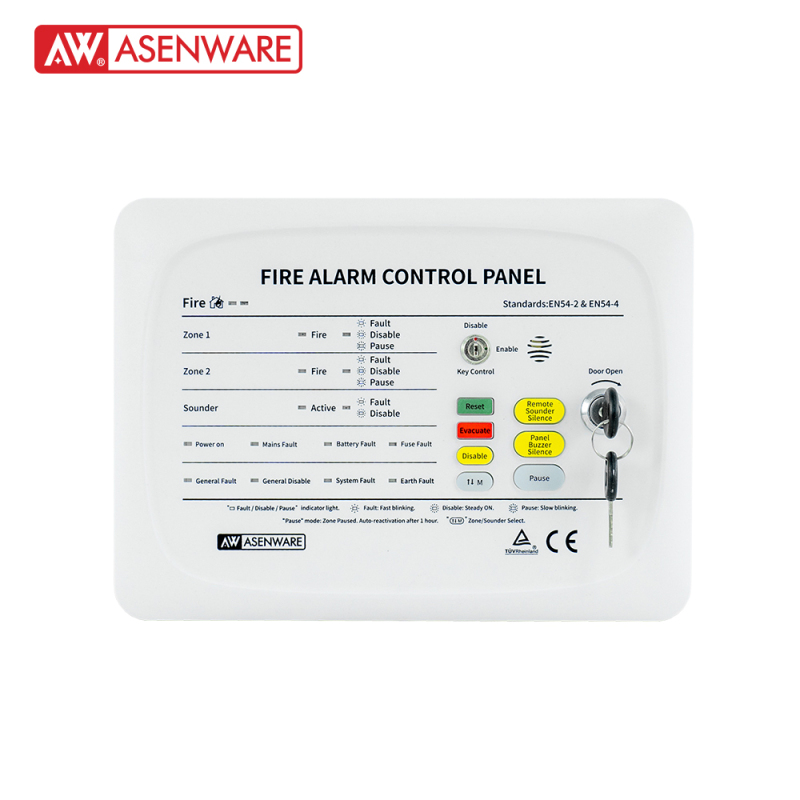

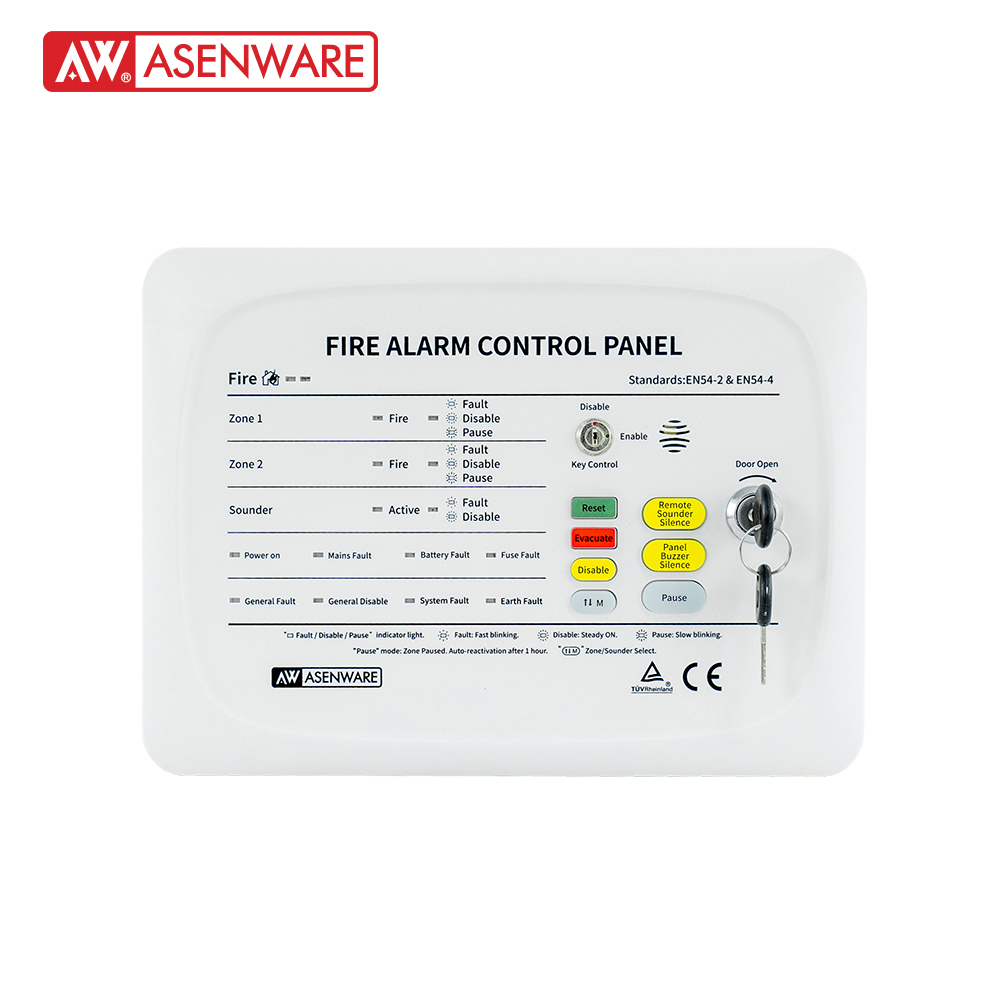

AW-CFP2166-2 TUV Fire Alarm Control Panel
AW-CFP2166-2 TUV Fire Alarm Control Panel AW-CFP2166-2 TUV Fire Alarm Control Panel AW-CFP2166-2 TUV Fire Alarm Control Panel AW-CFP2166-2 TUV Fire Alarm Control Panel
  • AW-CFP2166-2 TUV Fire Alarm Control Panel
  • AW-CFP2166-2 TUV Fire Alarm Control Panel

AW-CFP2166-2 TUV Fire Alarm Control Panel

Item No.: AW-CFP2166-2
Maximum number of Analogue Conventional Detector Inputs: 20 detectors each zone
Add to Inquiry
Description
Description

Description The AW-CFP2166 fire alarm panel has the following characteristics: Maximum number of Analogue Conventional Detector Inputs: 20 detectors each zone Input: 2 Zones 2 outputs for Alarm devices: 2 bells Relays: fault relay and fire relay Auxiliary power output: 24VDC/ 100mA limiting protection Automatic power switchover: mains power and secondary power (from batteries) Independent functional buttons with indication: User friendly interface for easy operation and recognition Access levels to enter the panel Product Features 1.Surface mounting 2.220VAC and battery for power supply 3.2 wire communication for Zones 4.LED indication and buzzer 5.Access levels to enter the panel 6.Sounder output for fire alarm 7.Relay outputs for fire alarm and fault warning Technical Specification Model AW-CFP2166-2 Mains supply 220V-240VAC,50/60 Hz Resettable 24V output 18～28VDC(24VDC typical). 200mAmax, current limited Detectors connection allowed each Zone 20 (including MCPs) Sounder output Max 200mA@24VDC Battery low-voltage protection 21V Zone alarm current 8～20mA

Technical Specifications

ParameterSpecification
ModelAW-CFP2166-2
Mains supply220V-240VAC,50/60 Hz
Resettable 24V output18～28VDC(24VDC typical). 200mAmax, current limited
Detectors connection allowed each Zone20 (including MCPs)
Sounder outputMax 200mA@24VDC
Battery low-voltage protection21V
Zone alarm current8～20mA
