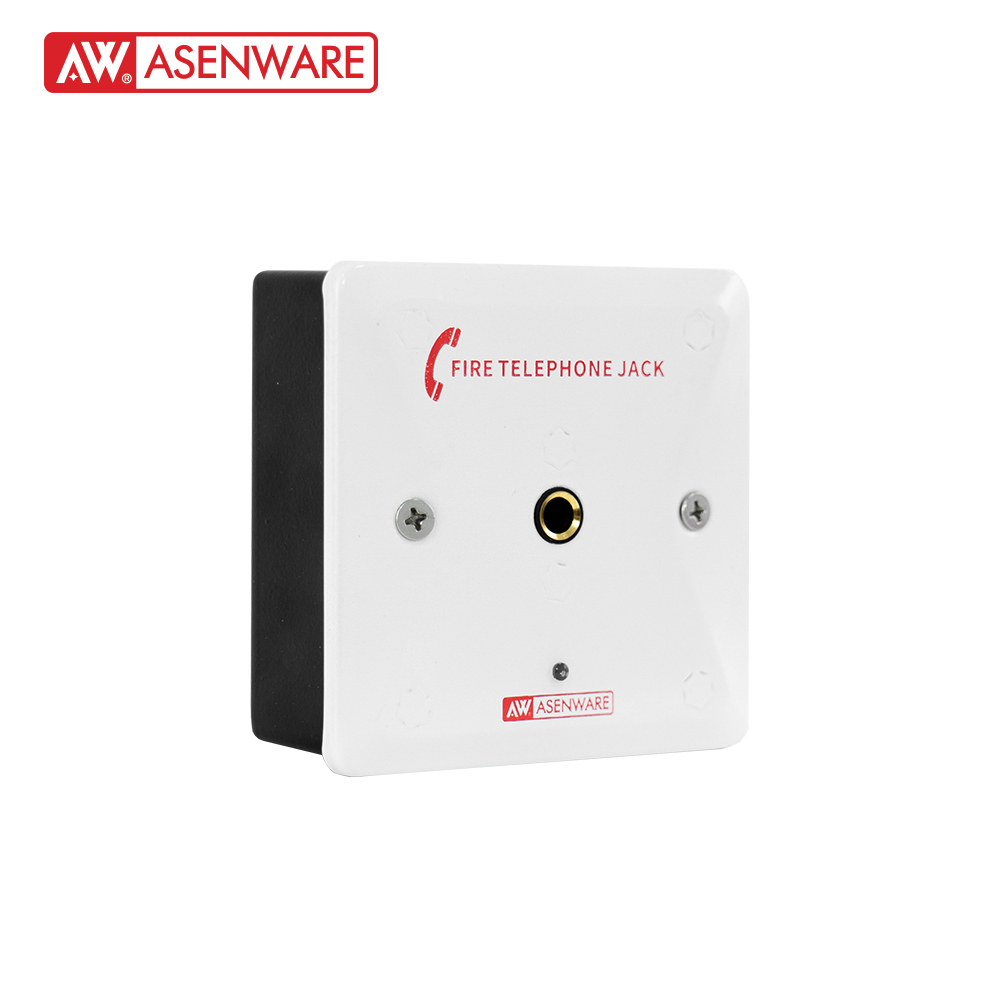

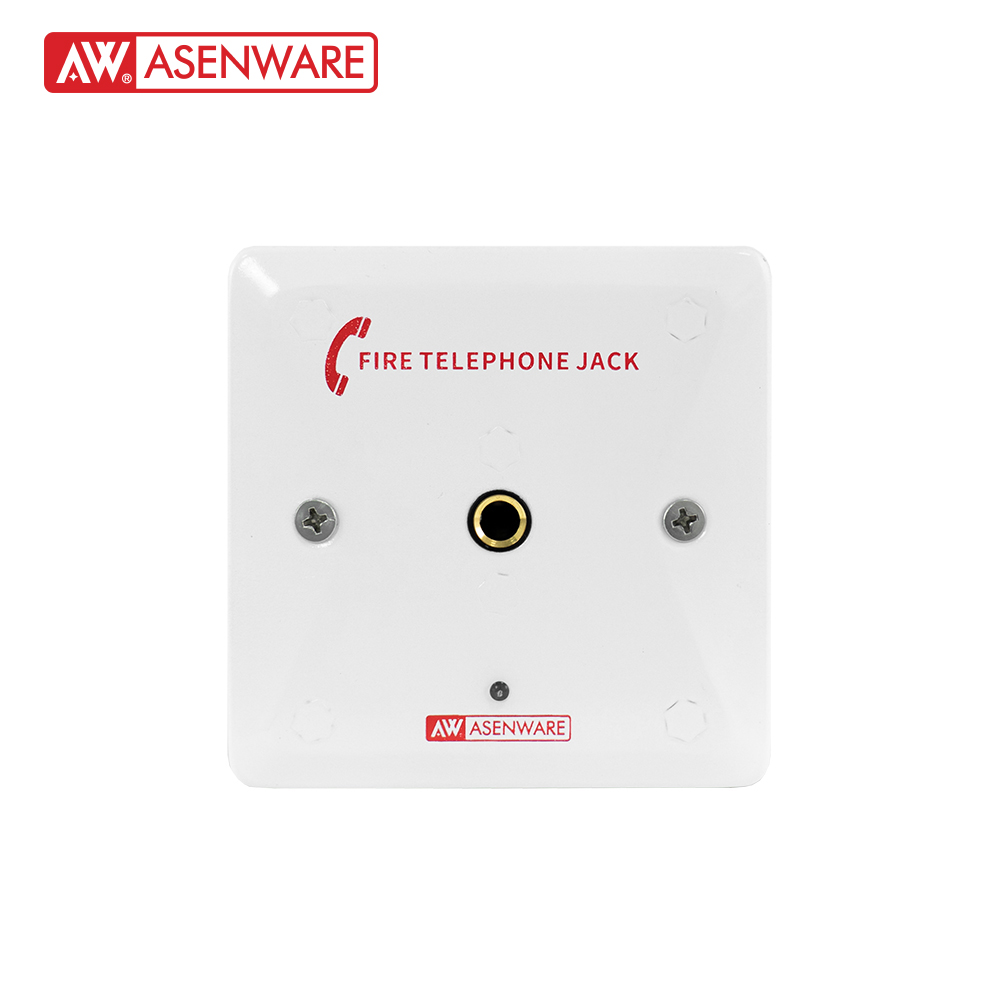

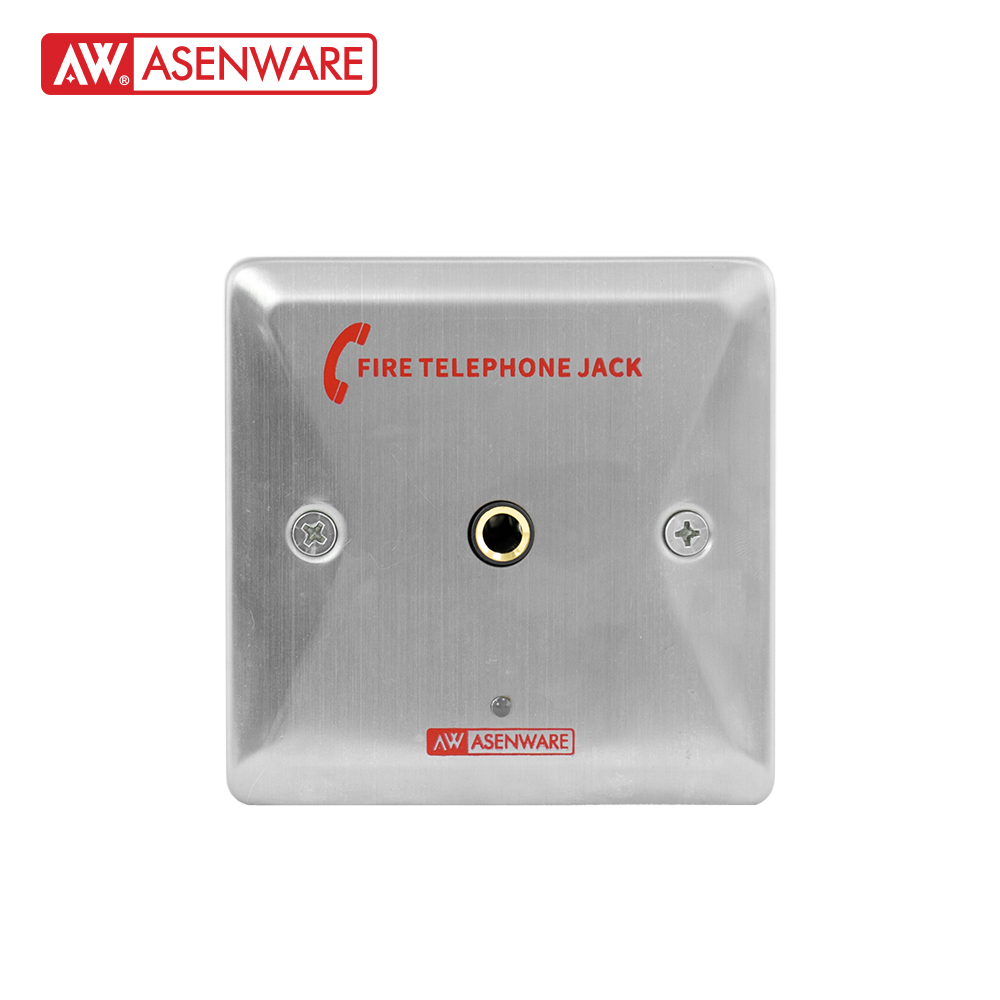

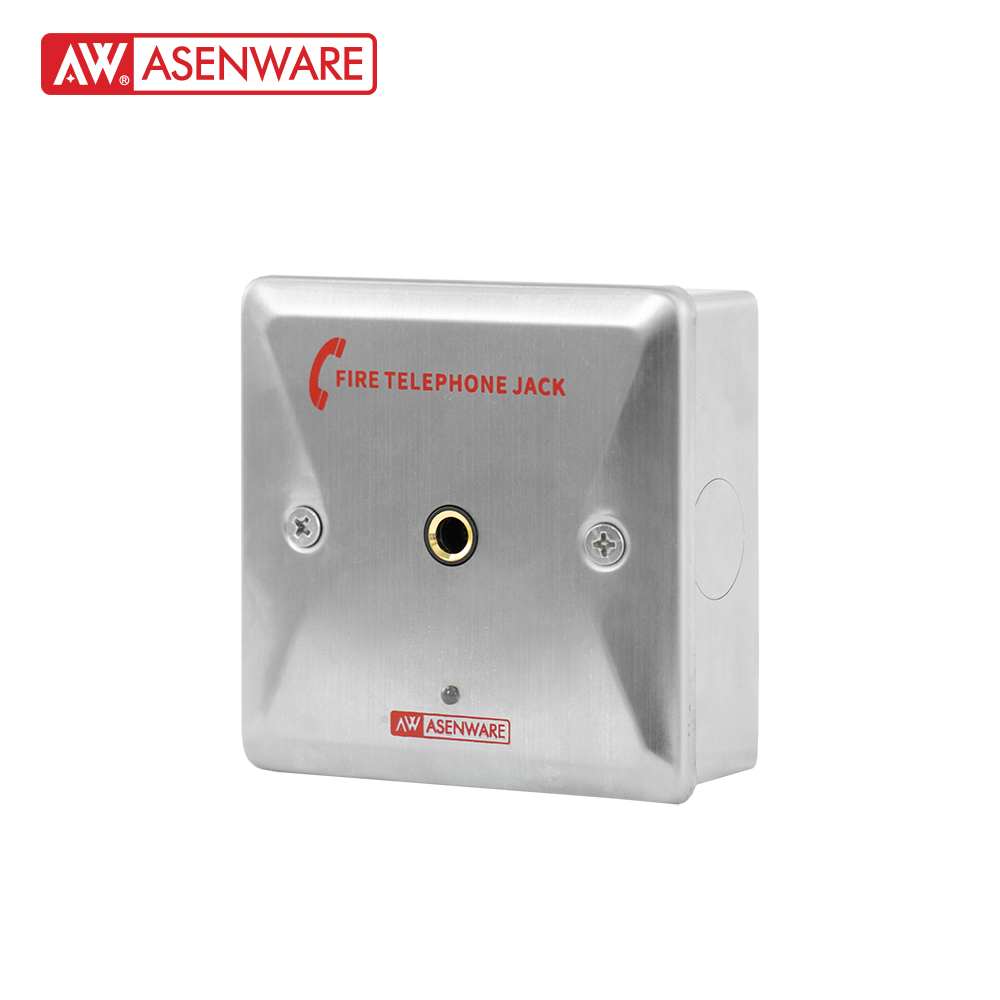

AW-D154 addressable fire telephone jack is designed for use with the AW-D153 handset. It is installed on the wall or in the equipment box. When the handset's plug is inserted into the base, the system automatically triggers the dialing program to connect to the panel and establish a call. The AW-D154 supports address program through AW-PR101L.
Product Features
1.Surface mounting
2.Adopting a plug-in structure
3.Easy operation
4.2 wire addressable bus communication
Technical Specification
| Model No. |
AW-D154 |
| Work Voltage |
24VDC |
| Frequency Response |
300~3400Hz |
| Monitoring State Current |
≤0.6mA |
| Communication State Current |
≤15mA |
