Home > Products > Conventional Combined smoke and heat detector

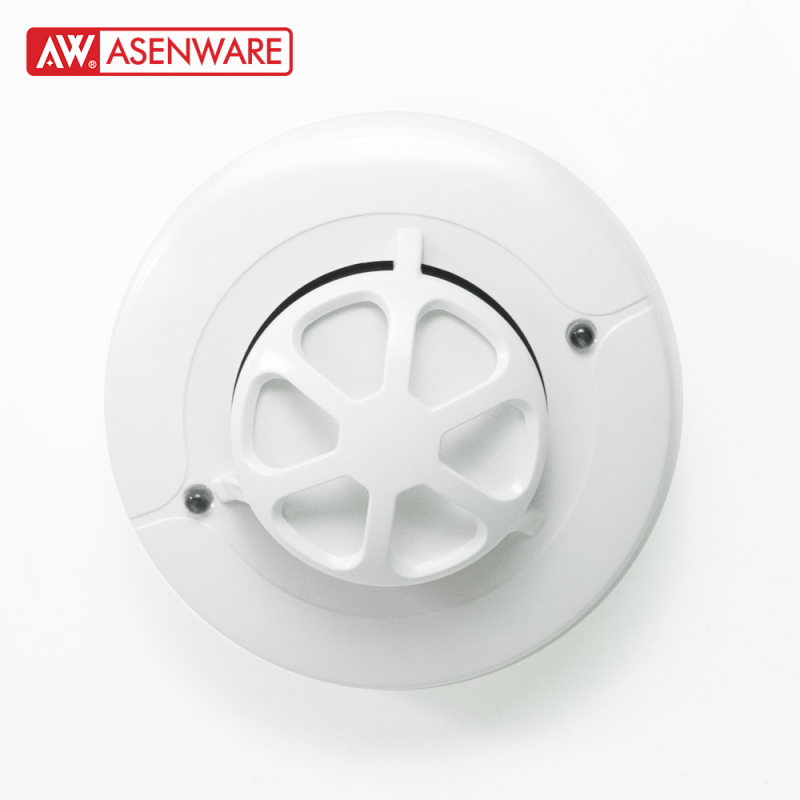

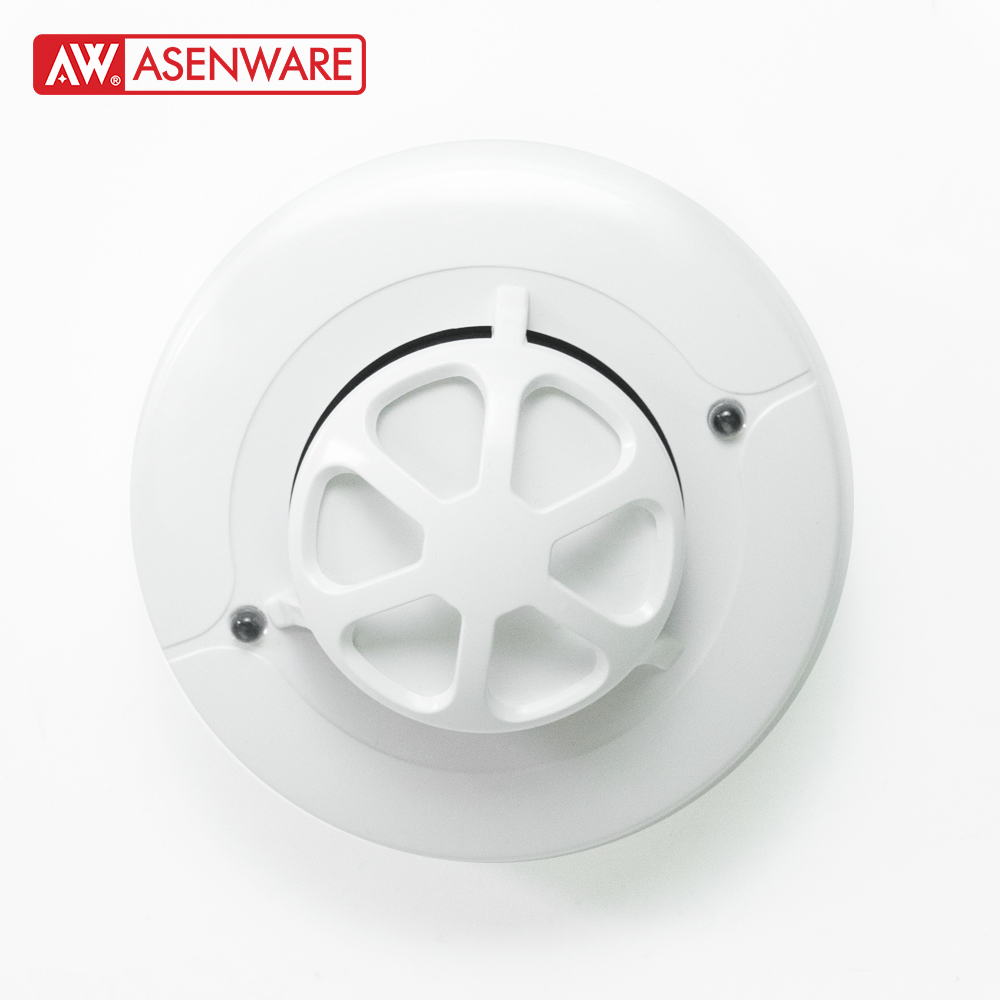

Conventional Combined smoke and heat detector
Conventional Combined smoke and heat detector Conventional Combined smoke and heat detector Conventional Combined smoke and heat detector Conventional Combined smoke and heat detector
  • Conventional Combined smoke and heat detector
  • Conventional Combined smoke and heat detector

Conventional Combined smoke and heat detector

Item No.: AW-D138C
AW-D138C is a smoke with fixed temperature and rate-of-rise heat detector. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire.It is designed to provide open area protection.The red LED
Add to Inquiry
Description
Description

AW-D138C is a smoke with fixed temperature and rate-of-rise heat detector. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire.It is designed to provide open area protection.The red LED Description AW-D138C is a smoke with fixed temperature and rate-of-rise heat detector. The detector uses an optical sensing chamber to detect smoke and a fixed-temperature heat sensor to detect heat from fire.It is designed to provide open area protection.The red LED on the detector provides a local 360° visible alarm indication.The detector that initiated the alarm condition will have its red LED latched until reset by panel. Features 1.Low Standby current for continuous monitoring 2.Two-wire connection 3.Dual LED design provides 360° viewing angle 4.Meet requirement ofEN54-5:2017 & EN54-7:2018 Technical Specification Model AW-D138C Operating voltage 9~28VDC @ Zone Operating current(@Zone 24VDC) Monitoring status≤120uA, Alarm statuss≤20mA @24VDC Application For indoor use only Wiring The promise of two bus system(Zone+, Zone-） Smoke alarm sensitivity 0.18~0.3dB/m Fixed temperature alarm 57℃(135°F) A2R Environmental Temperature range: -10~50°C(14~122°F) Humidity: 5 to 95% RH,non-condensing Materials and colors ABS, White

Technical Specifications

ParameterSpecification
ModelAW-D138C
Operating voltage9~28VDC @ Zone
Operating current(@Zone 24VDC)Monitoring status≤120uA, Alarm statuss≤20mA @24VDC
ApplicationFor indoor use only
WiringThe promise of two bus system(Zone+, Zone-）
Smoke alarm sensitivity0.18~0.3dB/m
Fixed temperature alarm57℃(135°F) A2R
EnvironmentalTemperature range: -10~50°C(14~122°F)
Materials and colorsABS, White
