Home > Products > Conventional Fire alarm Power Supply Box
Conventional Fire alarm Power Supply Box
Conventional Fire alarm Power Supply Box Conventional Fire alarm Power Supply Box Conventional Fire alarm Power Supply Box Conventional Fire alarm Power Supply Box
  • Conventional Fire alarm Power Supply Box
  • Conventional Fire alarm Power Supply Box

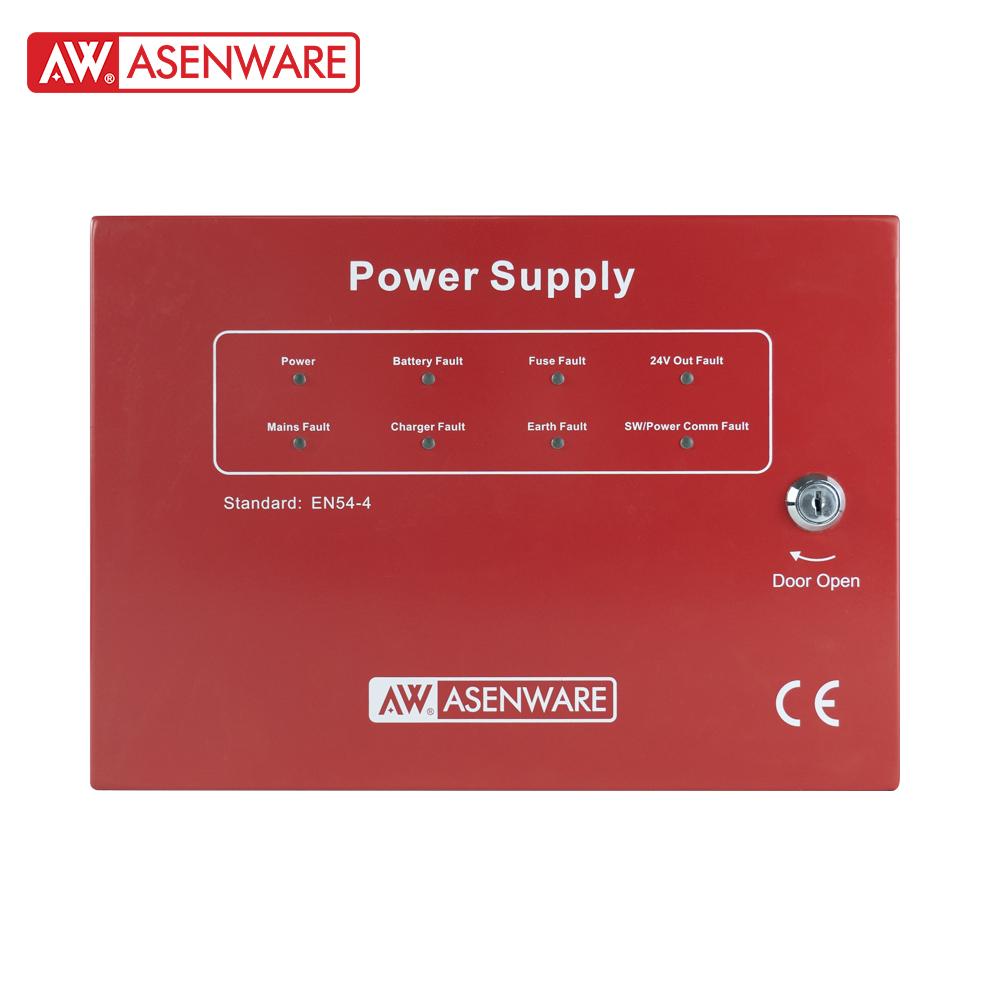

Conventional Fire alarm Power Supply Box

Item No.: AW-D121C(3A)
AW-D121C Power Supply is used with AW-CFP2166 series conventional fire alarm control panel. It is mainly used to increase the load capacity of the panel. And it can reset the output of 24VDC by 3 inputs (volt free input, voltage input and RS485).
Add to Inquiry
Description
Description

AW-D121C Power Supply is used with AW-CFP2166 series conventional fire alarm control panel. It is mainly used to increase the load capacity of the panel. And it can reset the output of 24VDC by 3 inputs (volt free input, voltage input and RS485). Description AW-D121C Power Supply is used with AW-CFP2166 series conventional fire alarm control panel. It is mainly used to increase the load capacity of the panel. And it can reset the output of 24VDC by 3 inputs (volt free input, voltage input and RS485). Features 1.Surface mounting 2.Working status indicators 3.24VDC output short circuit protection function 4.Selectable input modes to reset 24VDC out 5.Compatible with the latest EN54-4 standard Technical Specification Mains input voltage 85V-264VAC Standby power supply with Lead-acid battery 12V/2.3Ah*2 Operating temperature -10℃~50℃ Relative humidity: <95%(non-condensing) Resettable output 24VDC, 20V-28VDC with 3A limiting protection Capacity of the fault output relay contact 1A@30VDC Voltage input reset port 18VDC~30VDC Protection class IP30 Application For indoor use only Materials and color SPCC, red Size 316mm*225mm*91mm

Technical Specifications

ParameterSpecification
Mains input voltage85V-264VAC
Standby power supply with Lead-acid battery12V/2.3Ah*2
Operating temperature-10℃~50℃ Relative humidity: <95%(non-condensing)
Resettable output24VDC, 20V-28VDC with 3A limiting protection
Capacity of the fault output relay contact1A@30VDC
Voltage input reset port18VDC~30VDC
Protection classIP30
ApplicationFor indoor use only
Materials and colorSPCC, red
Size316mm*225mm*91mm
