Home > Products > Conventional Power Supply Box
Conventional Power Supply Box
Conventional Power Supply Box Conventional Power Supply Box Conventional Power Supply Box Conventional Power Supply Box
  • Conventional Power Supply Box
  • Conventional Power Supply Box

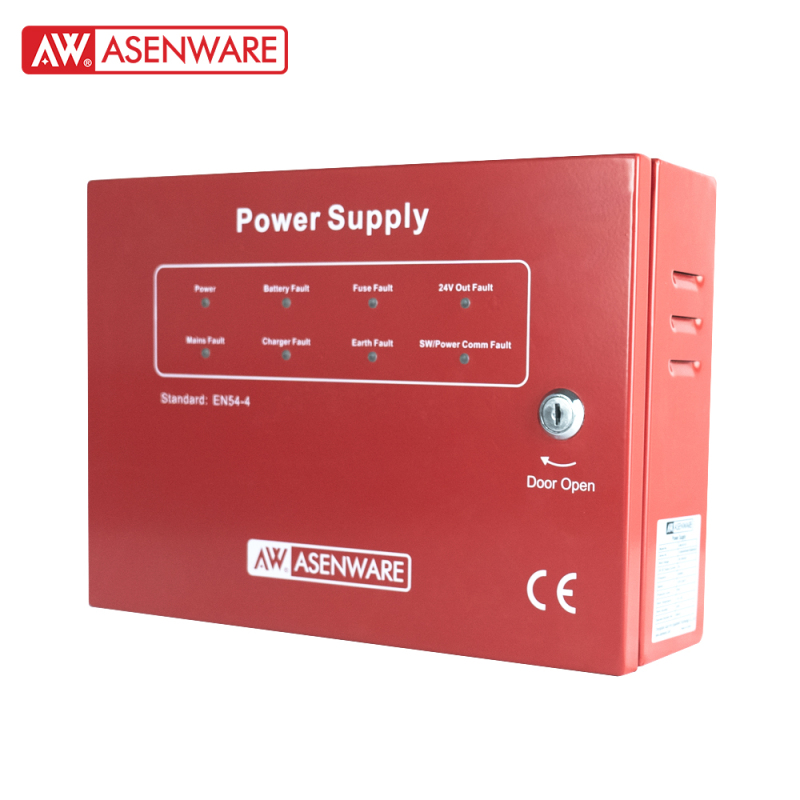

Conventional Power Supply Box

Item No.: AW-D121C(2.5A)
The AW-D121C is designed for Asenware all fire alarm system to provide auxiliary power when the external devices cannot be driven by the power from the panel, it has a battery backup for use in the event of an emergency power outage.
Add to Inquiry
Description
Description

The AW-D121C is designed for Asenware all fire alarm system to provide auxiliary power when the external devices cannot be driven by the power from the panel, it has a battery backup for use in the event of an emergency power outage. Description The AW-D121C is designed for Asenware all fire alarm system to provide auxiliary power when the external devices cannot be driven by the power from the panel, it has a battery backup for use in the event of an emergency power outage.The conventional power supply box AW-D121C provides 24VDC output, rated current is 2.5A or 5A to drive external devices. Features 1.Standby battery 2.High flexibility, flexible settings according to specific projects 3.Complied with EN54-2 & EN54-4 Technical Specification Model AW-D121C Operating voltage 110VAC or 220VAC Branch output current 2.5A or 5A Protection level IP30 Environmental Temperature range: -10 to 50°C (14~122°F) Humidity: 5 to 95% RH, non-condensing Mating host Asenware all fire alarm control panel Size (L*W*H) 315mm* 225mm* 75mm

Technical Specifications

ParameterSpecification
ModelAW-D121C
Operating voltage110VAC or 220VAC
Branch output current2.5A or 5A
Protection levelIP30
EnvironmentalTemperature range: -10 to 50°C (14~122°F) Humidity: 5 to 95% RH, non-condensing
Mating hostAsenware all fire alarm control panel
Size (L*W*H)315mm* 225mm* 75mm
