Home > Products > Conventional Reflective Optical Beam Smoke Detector

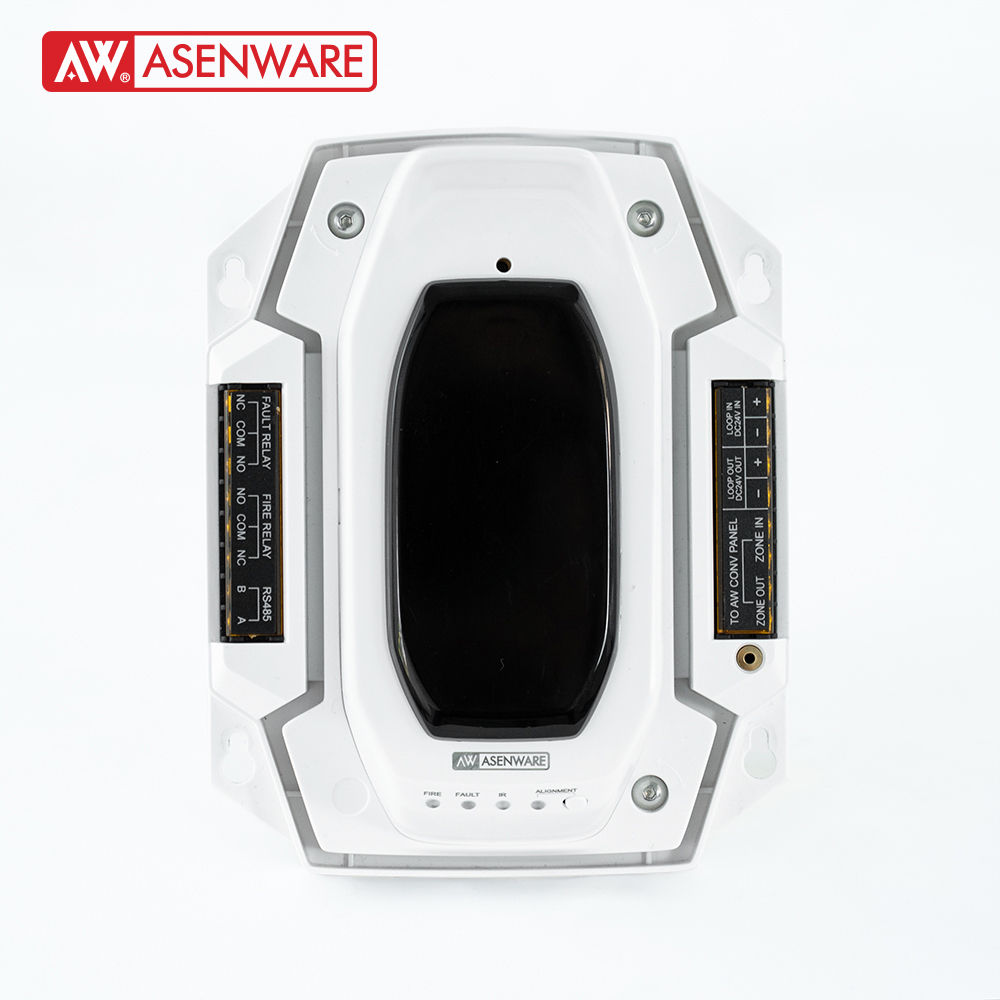

Conventional Reflective Optical Beam Smoke Detector
Conventional Reflective Optical Beam Smoke Detector Conventional Reflective Optical Beam Smoke Detector Conventional Reflective Optical Beam Smoke Detector Conventional Reflective Optical Beam Smoke Detector
  • Conventional Reflective Optical Beam Smoke Detector
  • Conventional Reflective Optical Beam Smoke Detector

Conventional Reflective Optical Beam Smoke Detector

Item No.: AW-D130C
2. Easy debugging, accurate and fast alignment, intelligent and fast calibration;
Add to Inquiry
Description
Description

Description Features 1. High-transparency telescope structure 2. Easy debugging, accurate and fast alignment, intelligent and fast calibration; 3.High quality, durability and highly sensitive sensor 4. Automatic compensation, improves the ability to resist dust and vibration interference and reduces false alarms. 5.Optical distance can reach to maximum 160m, minimum 5m Technical Specification Main Voltage LOOP 24V or DC 12-24V Working Current static current ≤10 mA@DC 24V, alarm current ≤15 mA@DC 24V Optical Detection Distance 5 -160m Standard Number Ref EN54-12 Material and Color ABS, white

Technical Specifications

ParameterSpecification
Main VoltageLOOP 24V or DC 12-24V
Working Currentstatic current ≤10 mA@DC 24V, alarm current ≤15 mA@DC 24V
Optical Detection Distance5 -160m
Standard Number RefEN54-12
Material and ColorABS, white
