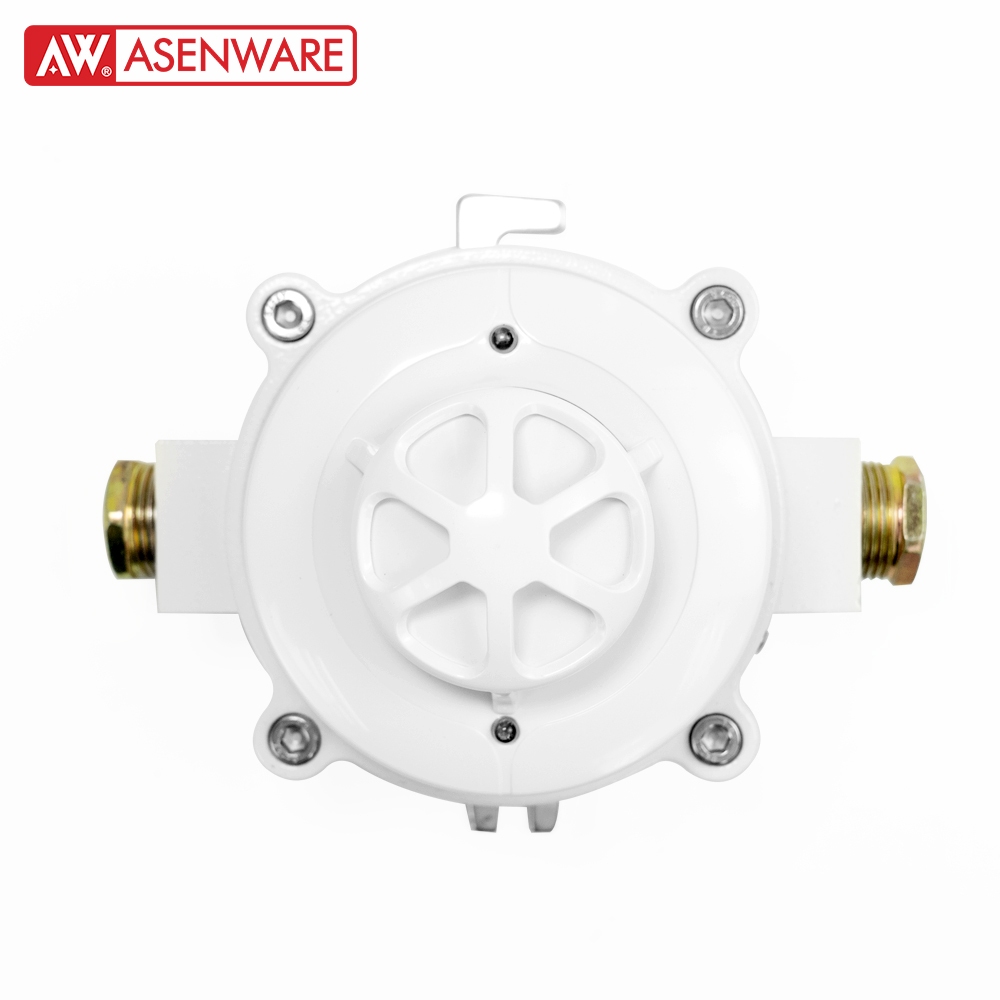

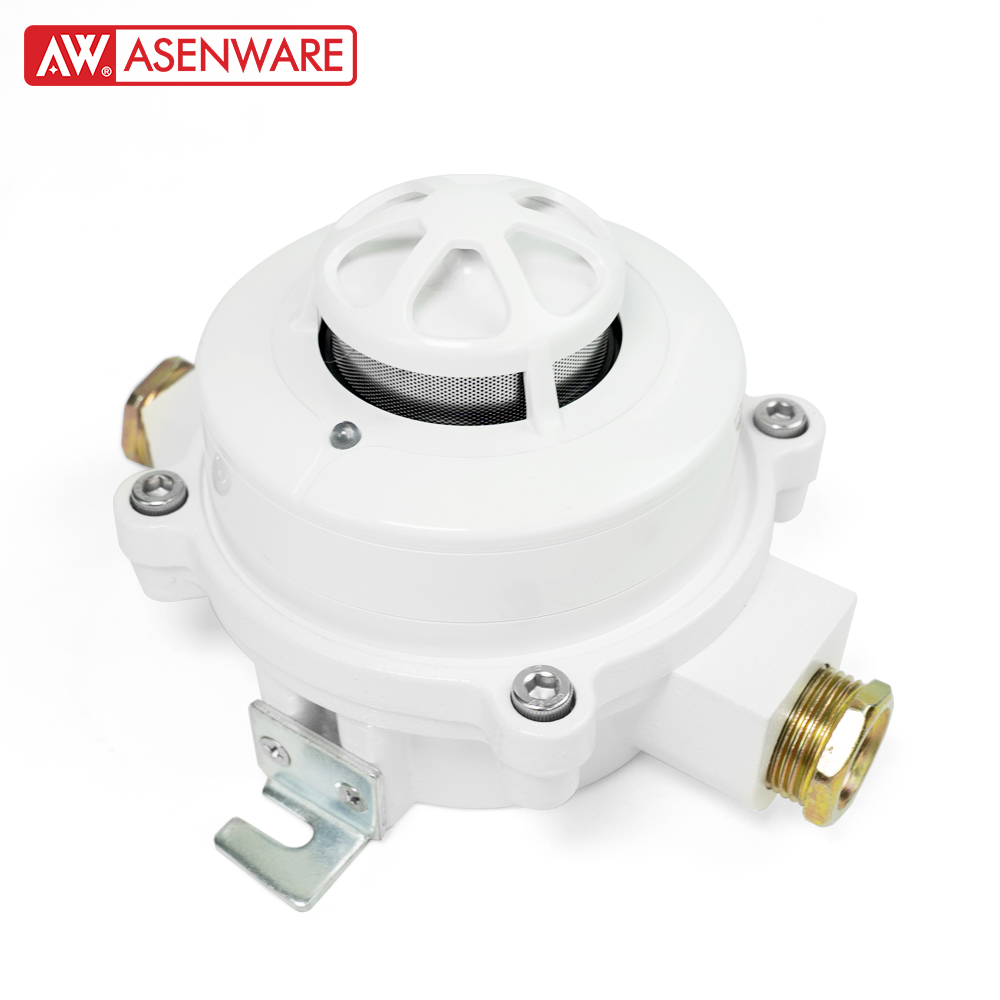

The AW-CSH831EX series have excellent explosion-proof performance. It is suitable for hazardous locations which include explosive gas environment.The AW-CSH831EX conventional photoelectric smoke and heat combined detector uses new scattering technology and unique maze design and thermal component. It will trigger and latch alarm signal while smog concentrations or rise of temperature exceed the threshold level.This detector can be used with the conventional fire alarm panel.
Features
1.LED indicator
2.Excellent explosion-proof performance
3.Meets all requirements of latest EN54-7:2000 and EN54-5:2000
4.Easy Installation
Technical Specification
| Main Voltage |
DC24V±3V (no polarity) |
| Atmospheric pressure |
80kPa～110kPa |
| Fix Temperature Alarm |
57℃ (135°F) |
| Rate of Rise Alarm |
7.1℃/5S |
| Ex-Atex Protection Level |
Gb/ExibDtDA21IP65T85 |
| Materials and colors |
CAST IRON，ABS, White |
| Mating Host |
AW-CFP2166 fire alarm control panel |
| Outlet Interface |
G20 |
| Environmental |
Temperature range: -10 to 50°C(14~131°F) Humidity: 5 to 95% RH, non-condensing |
