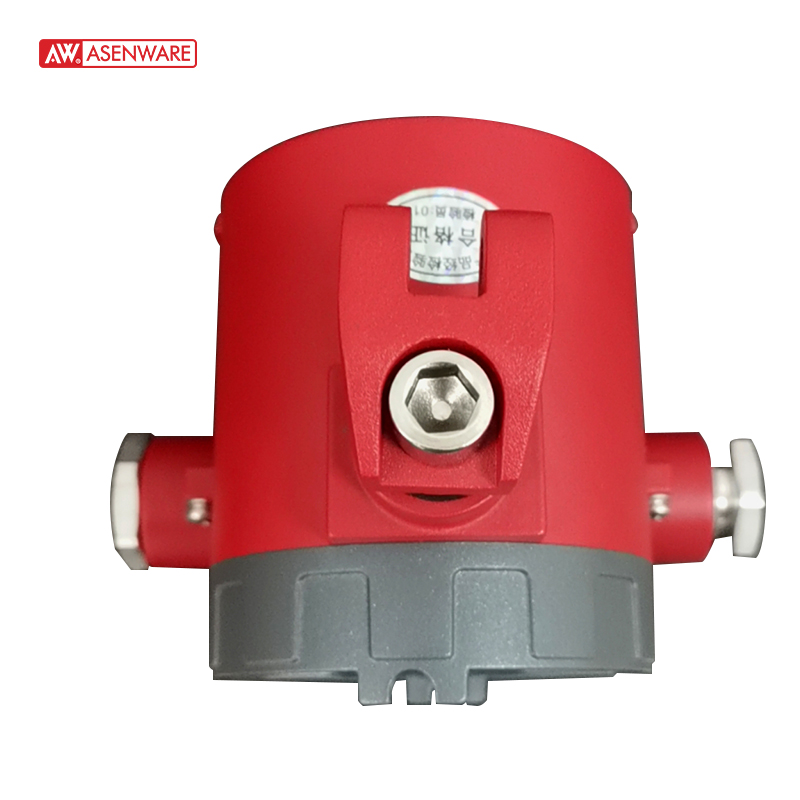

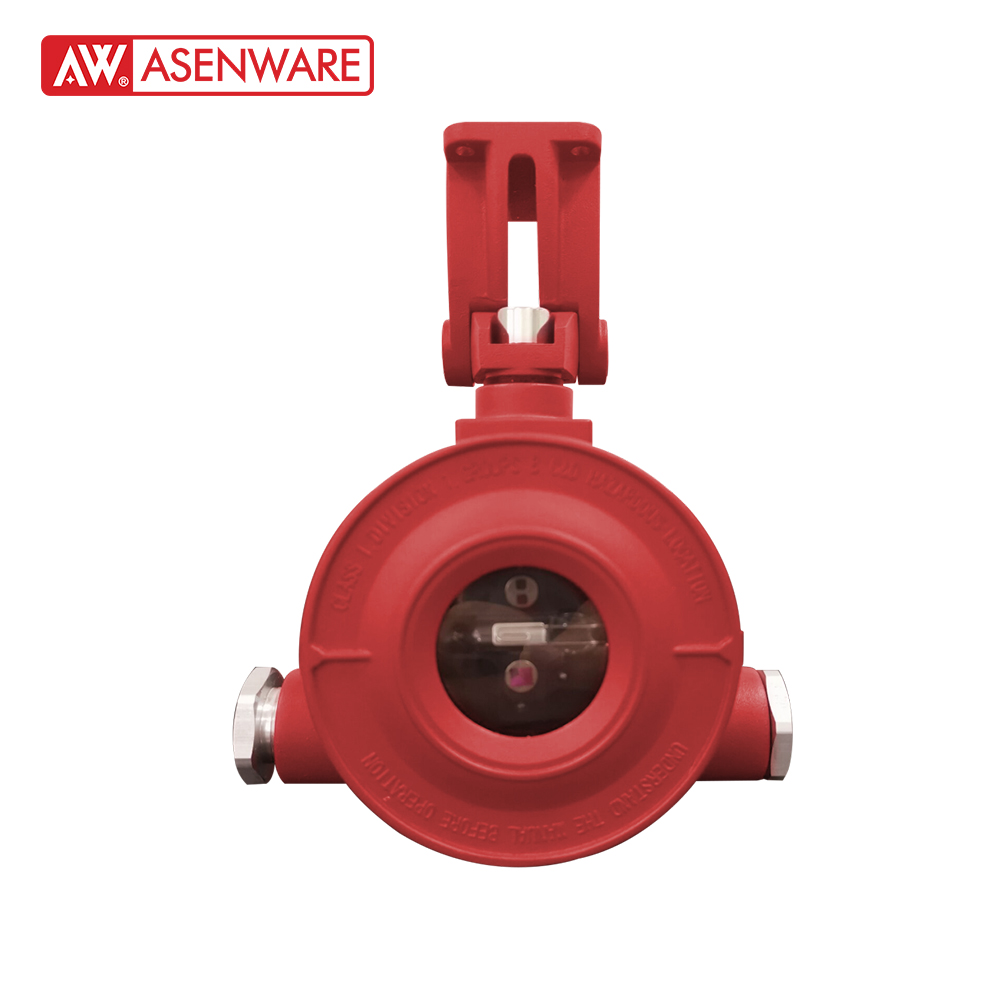

AW-FD704EX explosion-proof ultraviolet & infrared 3 flame detector is a new generation of detectors aimed at product performance improvement. This smoke detector adopts a signal processing algorithm with multiple patents, which can suppress various radiations caused by the sun, artificial lighting, welding lightning strikes and "black body".It provides continuous protection in the presence of numerous and frequent sources of false alarms and in environments where infrared radiation is present.
Features
1. Four bands: UV 185-260nm, IR 3.8um/4.3um /5.0um
2. Sensitivity setting can provide fast alarm, response time ≤5s
3. Detection distance of n-heptane can reach 197 feet (60m)
4. With lens pollution self-check function
5. Support multiple communication methods, flexible and easy to use
Technical Specification
| Size |
11.9cmx14.1cmx12.0cm |
| Weight |
3kg |
| Color |
Red |
| Shell Material |
Cast aluminum or stainless steel |
| Electrical Interface |
2x3/4NPT, M25*1.5, G3/4 (adapters can be customized) |
| Accessories |
Cast aluminum or stainless-steel bracket, plug, anti-collision net |
| Spectrum Range |
IR 3.8-5.0um UV185-260nm |
| Detection Angle |
120° |
| Sensitivity Level |
Sensitivity adjustable in three levels (set by magnetic stick) |
| Voltage Range |
24VDC(18~30VDC) |
