Home > Products > Fan Actuator Control Module AW-D127

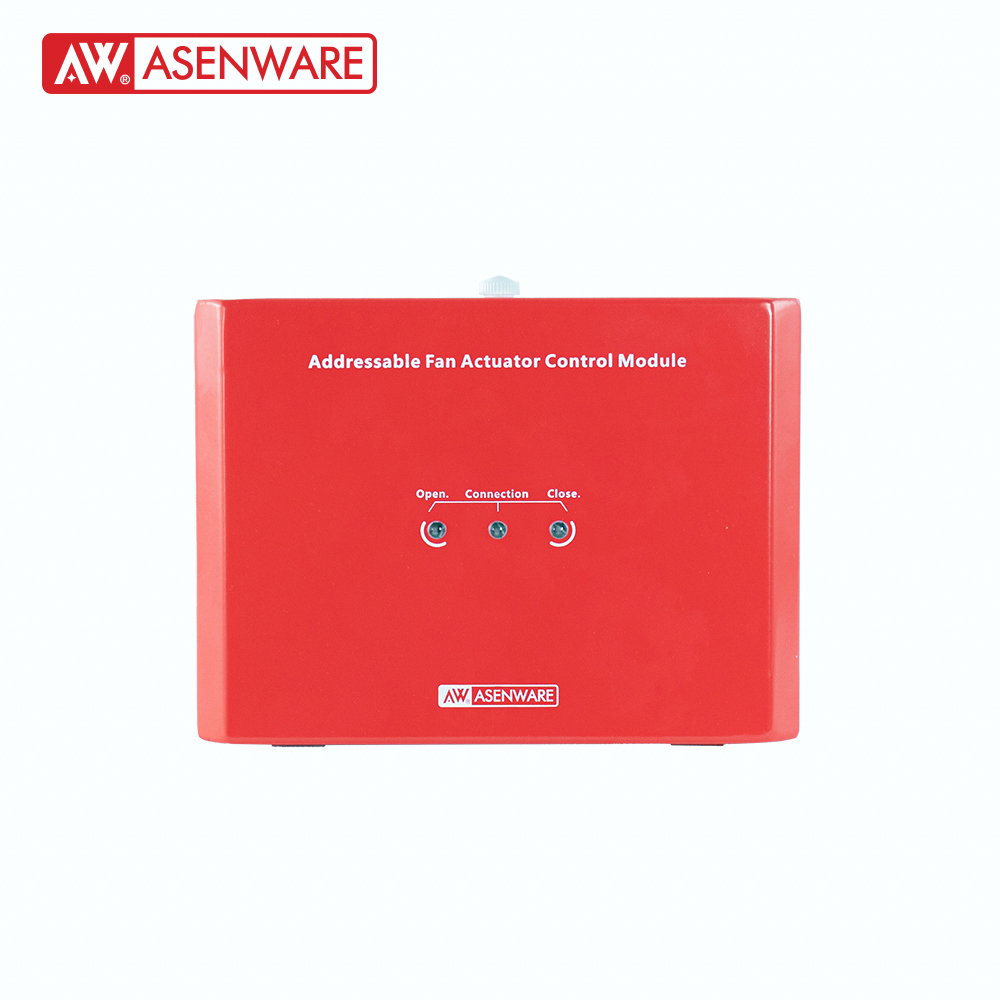

Fan Actuator Control Module AW-D127
Fan Actuator Control Module AW-D127 Fan Actuator Control Module AW-D127 Fan Actuator Control Module AW-D127 Fan Actuator Control Module AW-D127
  • Fan Actuator Control Module AW-D127
  • Fan Actuator Control Module AW-D127

Fan Actuator Control Module AW-D127

Item No.: AW-D127
This device AW-D127 is a fan actuator control module for addressable fire alarm system AW-FP200/AW-FP128 and conventional fire alarm system. It is easy to install and can manual / automatic control the fan actuator.
Add to Inquiry
Description
Description

This device AW-D127 is a fan actuator control module for addressable fire alarm system AW-FP200/AW-FP128 and conventional fire alarm system. It is easy to install and can manual / automatic control the fan actuator. Description This device AW-D127 is a fan actuator control module for addressable fire alarm system AW-FP200/AW-FP128 and conventional fire alarm system. It is easy to install and can manual / automatic control the fan actuator. Features 1. Easy to install 2. Addressable 2-wire communication technology 3. Control the fan actuator by manual / automatic operation. 4. Open box detection. 5. Output Power failure status can be maintained by magnetic retention relay.(Actuator motor open circuit detection). 6. Mains Input power failure monitoring function . 7. Position feedback terminal of fan for more than 85 degree and less than 5 degree. Technical parameter Model AW-D127 Main Voltage Monitoring part : LOOP 24V; Control part : AC220Vor DC24V; Working current Loop alarm current ≤ 40mA; Control part ≤500mA; Environmental -10℃～50℃, relative humidity: 5%～95%(no condensation) Application Indoor use only Degree of position feedback ＜5°and ＞85° Environmental Temperature range: -10 to 50°C (14~122°F) Humidity: ≤95% RH, non-condensing

Technical Specifications

ParameterSpecification
ModelAW-D127
Main VoltageMonitoring part : LOOP 24V; Control part : AC220Vor DC24V;
Working currentLoop alarm current ≤ 40mA; Control part ≤500mA;
Environmental-10℃～50℃, relative humidity: 5%～95%(no condensation)
ApplicationIndoor use only
Degree of position feedback＜5°and ＞85°
EnvironmentalTemperature range: -10 to 50°C (14~122°F)
