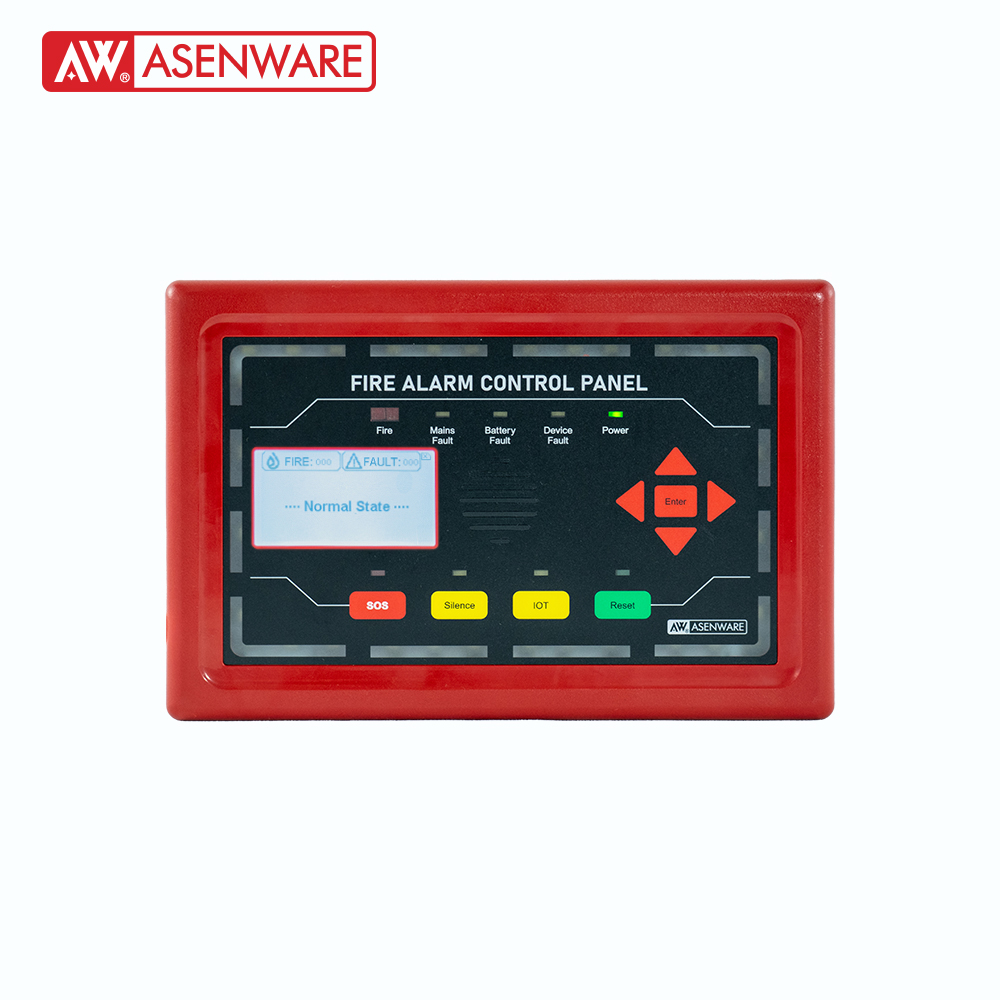

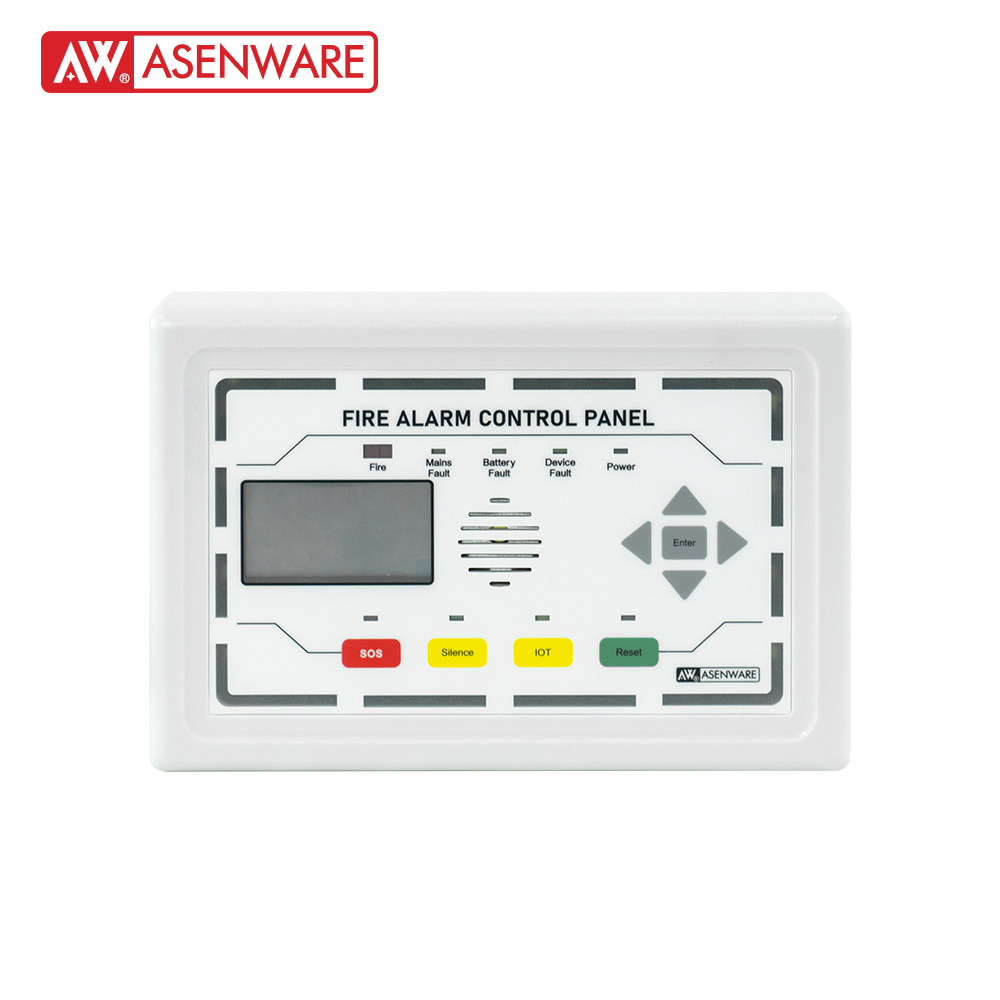

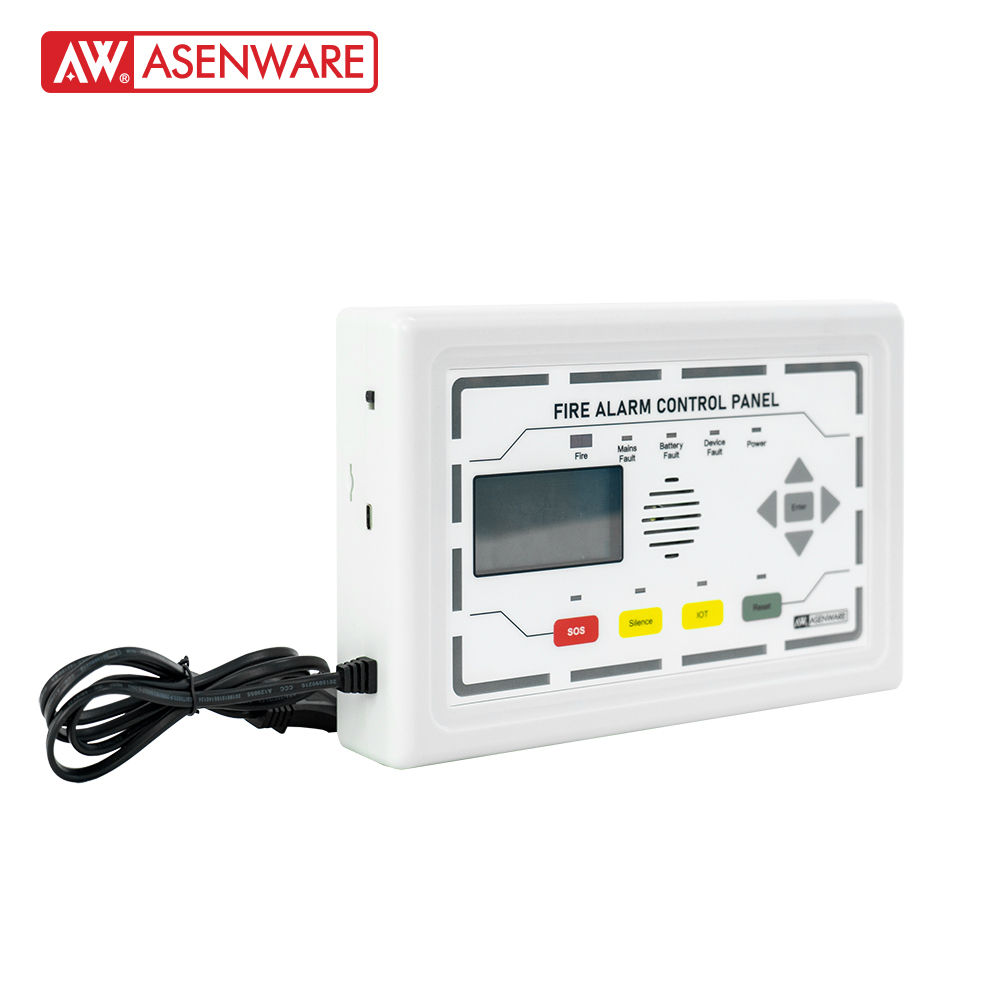

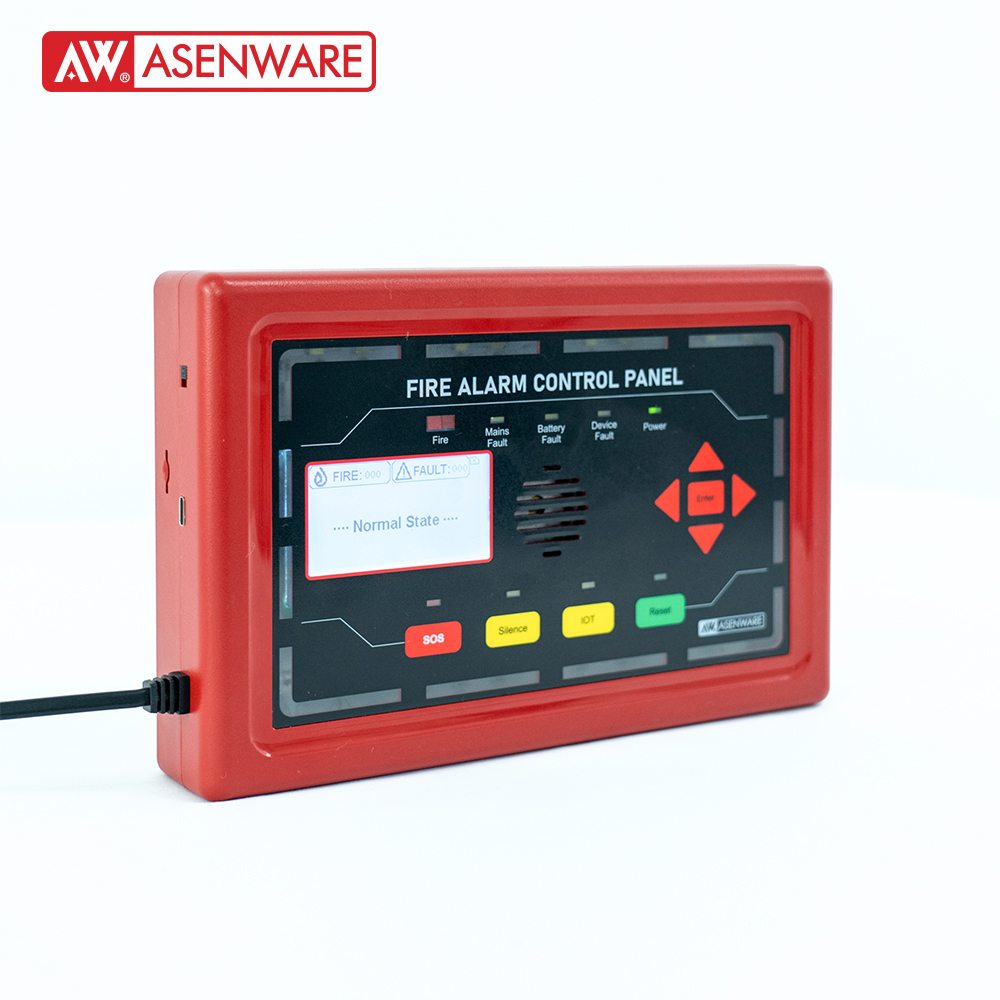

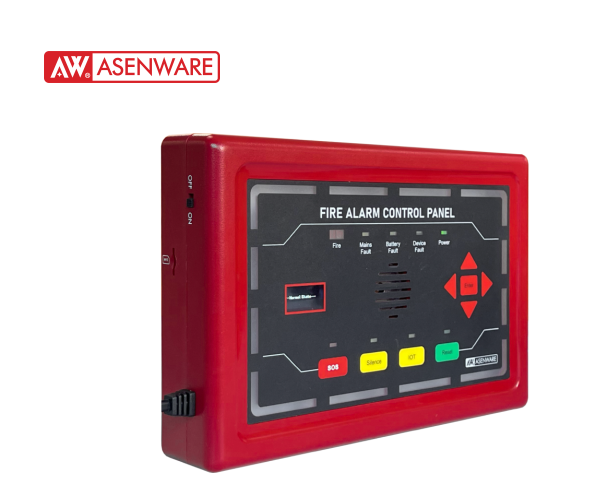

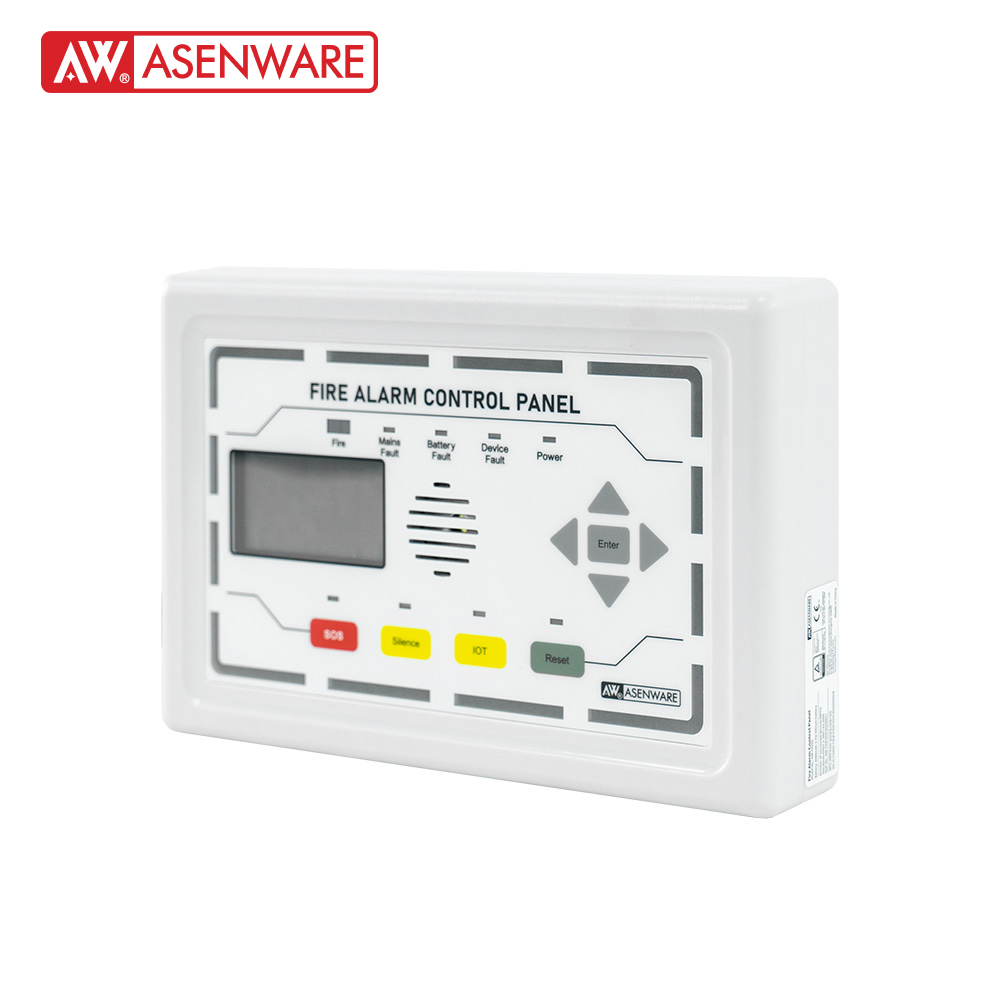

FIRE ALARM CONTROL PANEL is a miniature fire protection system that receives wireless devices. Simple human-machine interface and easy operation. A wireless module with long-distance, anti-interference, and strong stability can receive information from each wireless firefighting equipment. Equipped with dual power supply of mains and lithium batteries, automatic switching.
Features
1. A wireless module with long-distance anti-interference and strong stability, can receive information from each wireless firefighting equipment.
2. Equipped with dual power supply of mains and lithium batteries. If main power fail to supply power, it will switch to lithium battery for keeping power supply.
3. A panel can receive up to 99 wireless fire protection device messages and can remotely send alarm messages to the user's mobile phone through SIM.
4. Multiple non-interfering panels can be installed in the same location to receive wireless firefighting equipment.
Technical Specification
| Model |
AW-FP032 |
| Rated input voltage |
85V-265VAC，50Hz/60Hz |
| Standby battery capacity |
2000mAh 3.7V/ lithium battery |
| Working environment |
Relative humidity (<95%) at -20 ~40 ℃, no condensation) |
| Number of connected devices |
99PCS |
| The number of mobile phones that can be sent to text |
10 |
| Alarm Horn |
≥100dB@1m |
| Flashing frequency |
1Hz |
| Wireless Working Frequency |
433MHz （418MHz-448MHz） |
| Size |
240mm*160mm*51mm |
