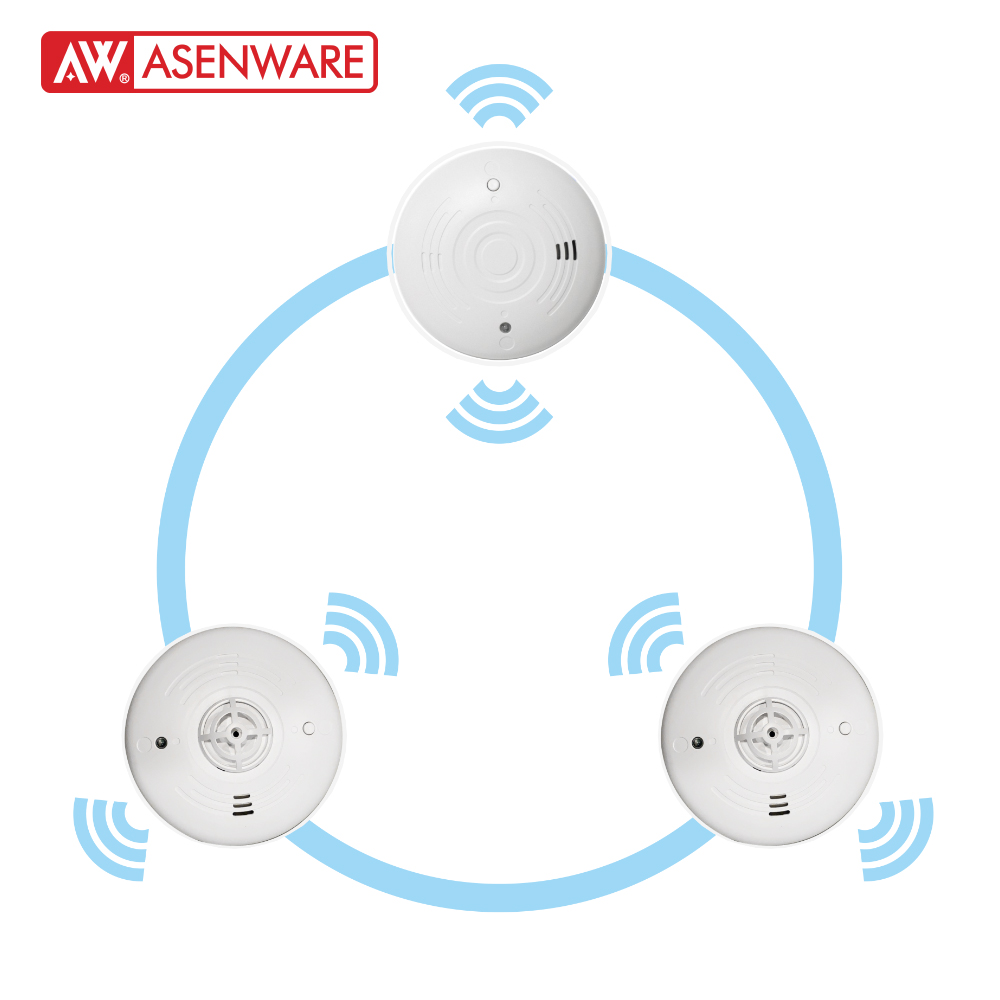

The AW-D603 (Smoke) interlinked wireless detector system uses a fast-response optical sensing chamber. Featuring a wireless network alarm function, this system detector can link with other detectors on the same network to activate alarms simultaneously. The system is powered by a long-life internal battery.The AW-D604 (Heat) interlinked wireless detector system uses a stable, sensitive temperature-sensing technology. Featuring a wireless network alarm function, this system detector can link with other detectors on the same network to activate alarms simultaneously. The system is powered by a long-life internal battery.The AW-D605 (Smoke & Heat Combined) interlinked wireless detector system uses a fast-response optical sensing chamber and stable, sensitive temperature-sensing technology. Featuring a wireless network alarm function, this system detector can link with other detectors on the same network to activate alarms simultaneously. The system is powered by a long-life internal battery.Product Features
1.Surface mounting
2. Full electronic coding
3. LED indicator and buzzer
4. No wire connection
5. Complete functional test with every activation
6. Meets all requirements of latest EN standard
7. LoRa® modulation
Technical Specification
| Operating Voltage |
3VDC (with battery CR17450/CR17505/CR17455(CR-AGF(compatible with Panasonic )) |
| Operating Current |
Average monitoring status ≤75uA.
Average alarm status ≤120mA |
| Operating Frequency |
433MHz(418MHZ-448MHz) |
| Wireless Transmit Power |
+20dB |
| Indicator |
Normal: Flash per minute
Alarm (Local): Continuously on
Alarm (Linkage): Continuously flash |
