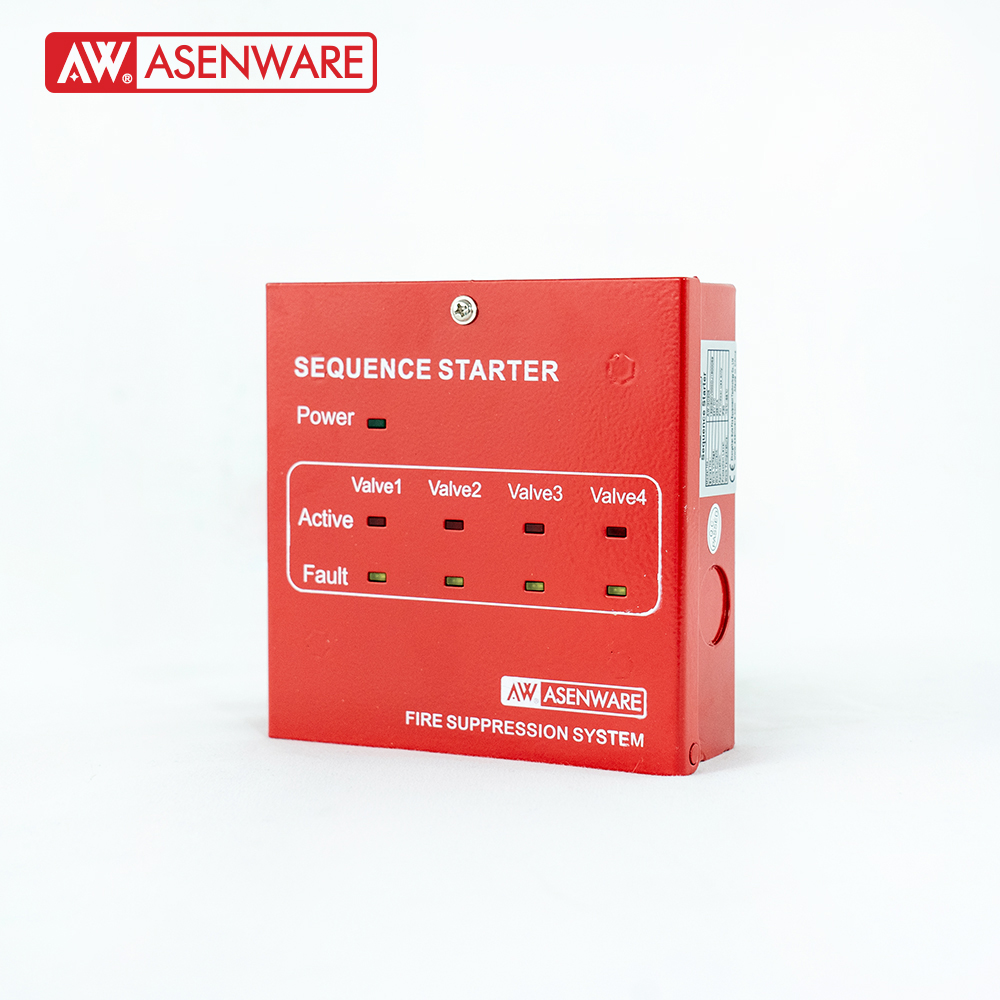

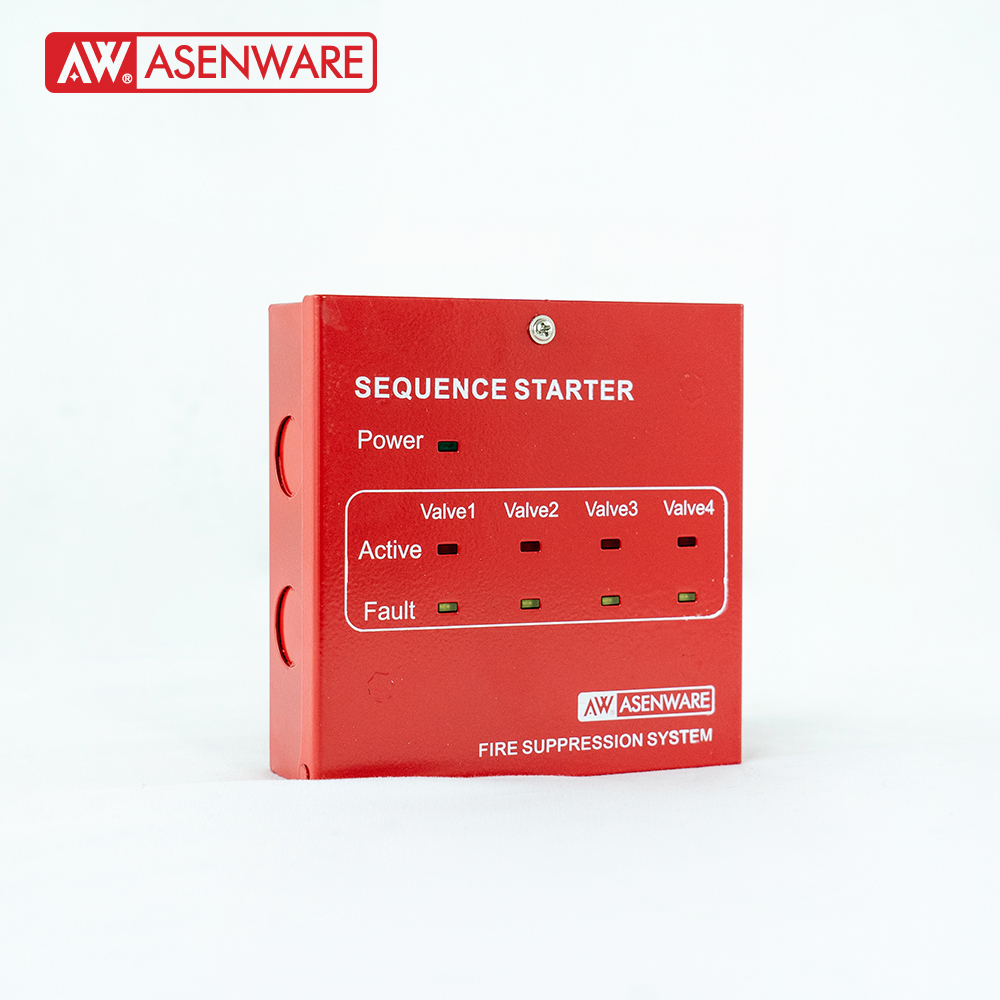

The module is designed to divide the valve signal output by the panel into four to delay the trigger one by one. There are 9 LED indicators on the module. Among them, the green indicator is the power indicator. When the power is turned on, it will light up. In addition, each valve output has a red indicator and a yellow indicator. When the corresponding output circuit is triggered, the red indicator light of that group will light up. When a circuit fails, the circuit's fault indicator will light up.
Product Features
1.Surface mounting
2.LED indicator
3.MCU intelligent control
4.Automatic fault detection
5.Connection via high-quality terminal 6.blocks Compatible with the latest standards
Technical Specification
| Operating Voltage |
24V DC |
| Operating Current |
≤25mA |
| Operating Temperature |
10℃~55℃ |
Relative humidity: ≤95% (non-condensing)
|
| Protection Class |
IP20 |
| Application |
For indoor use only |
| EM Valve Output Current |
2A max |
| Material and Color |
SPCC,Red |
