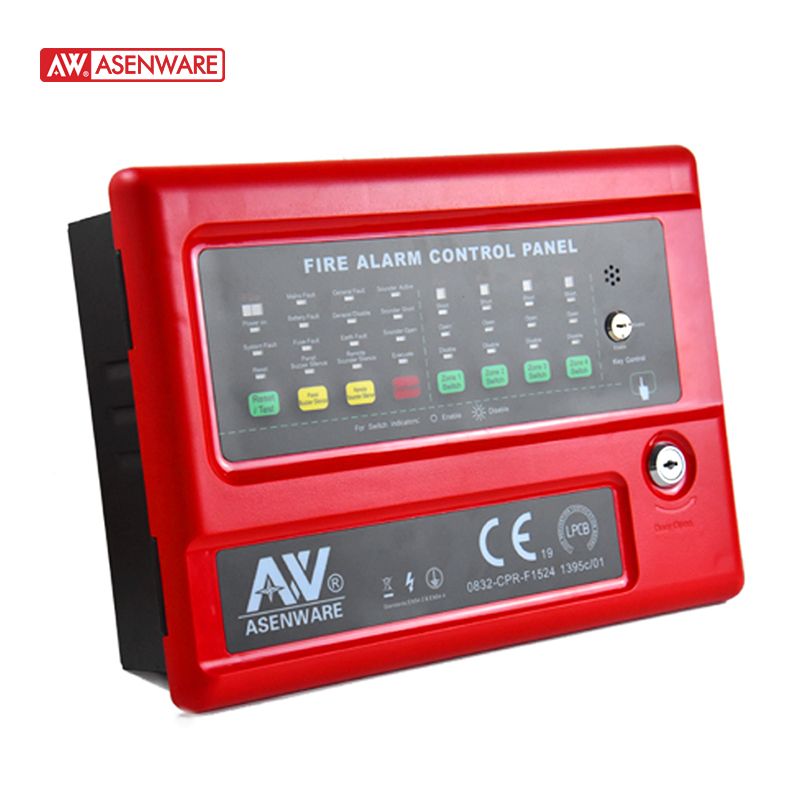

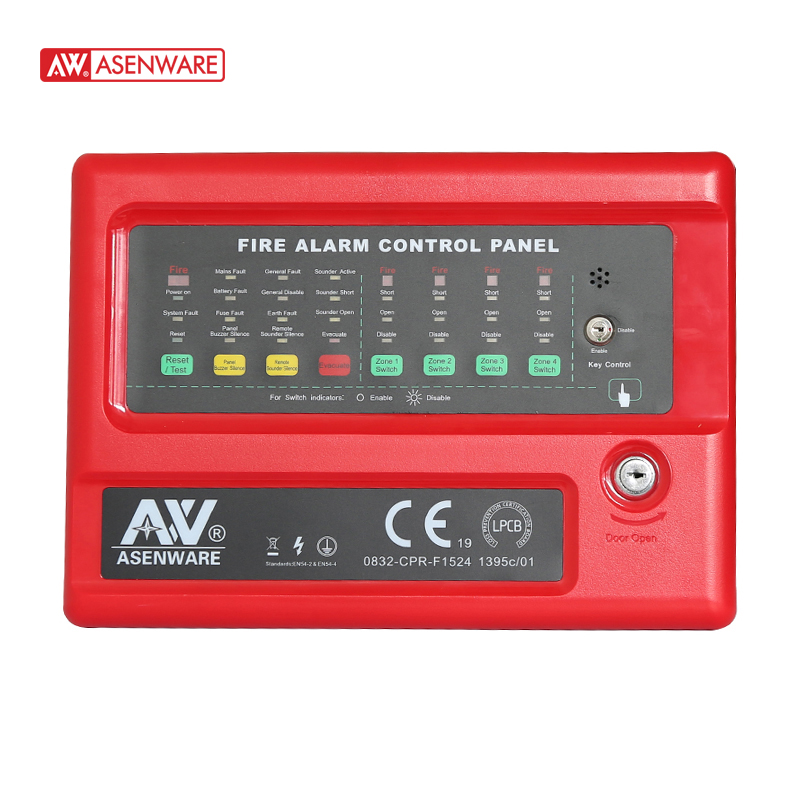

The fire alarm control panel is housed in the most attractive, modern designed, friendly user interface for easy operation and recognition. It has smaller size and easier for installation.The panel can also be ordered with a metal box.
Features
1. Automatic power switchover
2. 24V2.3Ah High-capacity batteries
3. Fault supervision and notification
4. 2 relay output circuits
5. Sounders and panel buzzer silence
6. Loop for wireless devices
7. Meets all requirements of latest EN54 part 2 and EN54 part 4Technical Specification
| Model |
AW-CFP2166-4W |
| Main Voltage |
220VAC 50HZ/60HZ |
| Batteries |
2*12V/ 2.3Ah sealed lead acid gel, self-regulated |
| Detectors connection allowed each zone |
20 detectors (except MCPs) |
| Zone alarm current |
6mA minimum/ 27mA maximum |
| Sounder output |
0.2A maximum |
| Relay contacts rating |
1A @30VDC |
