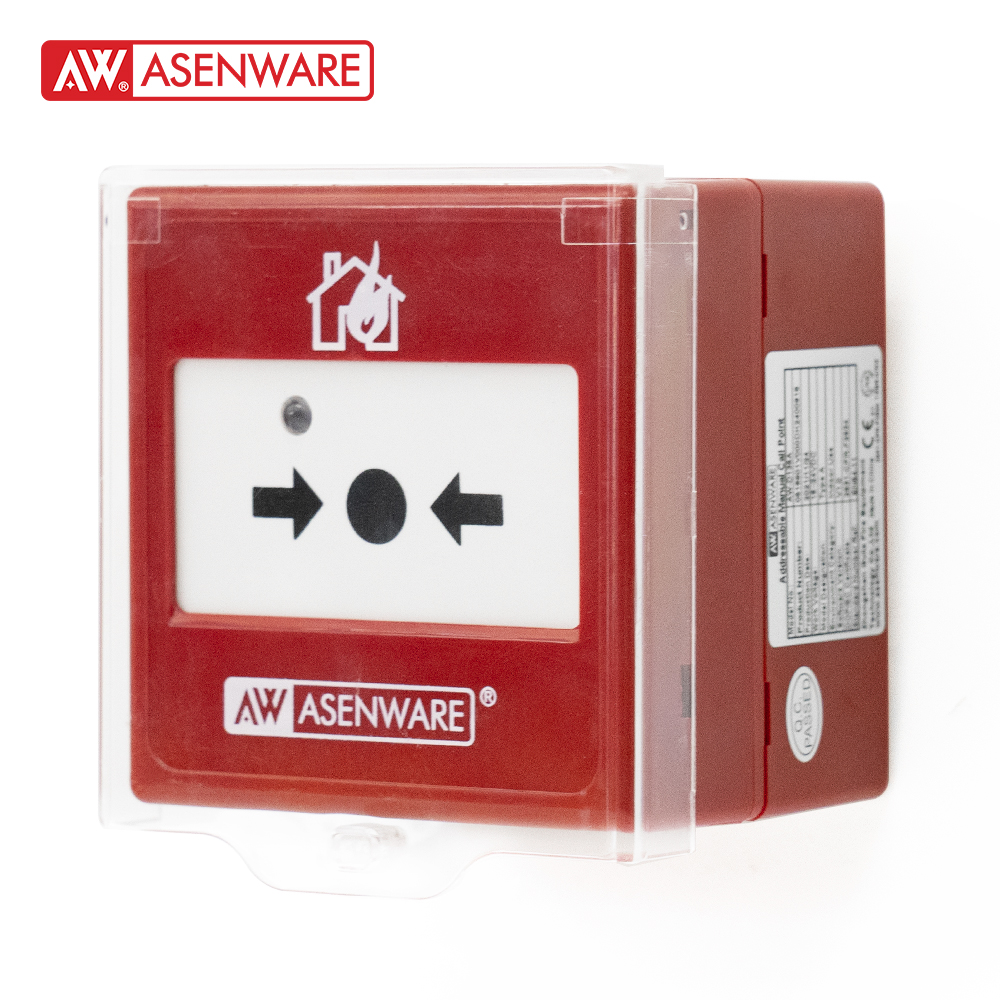

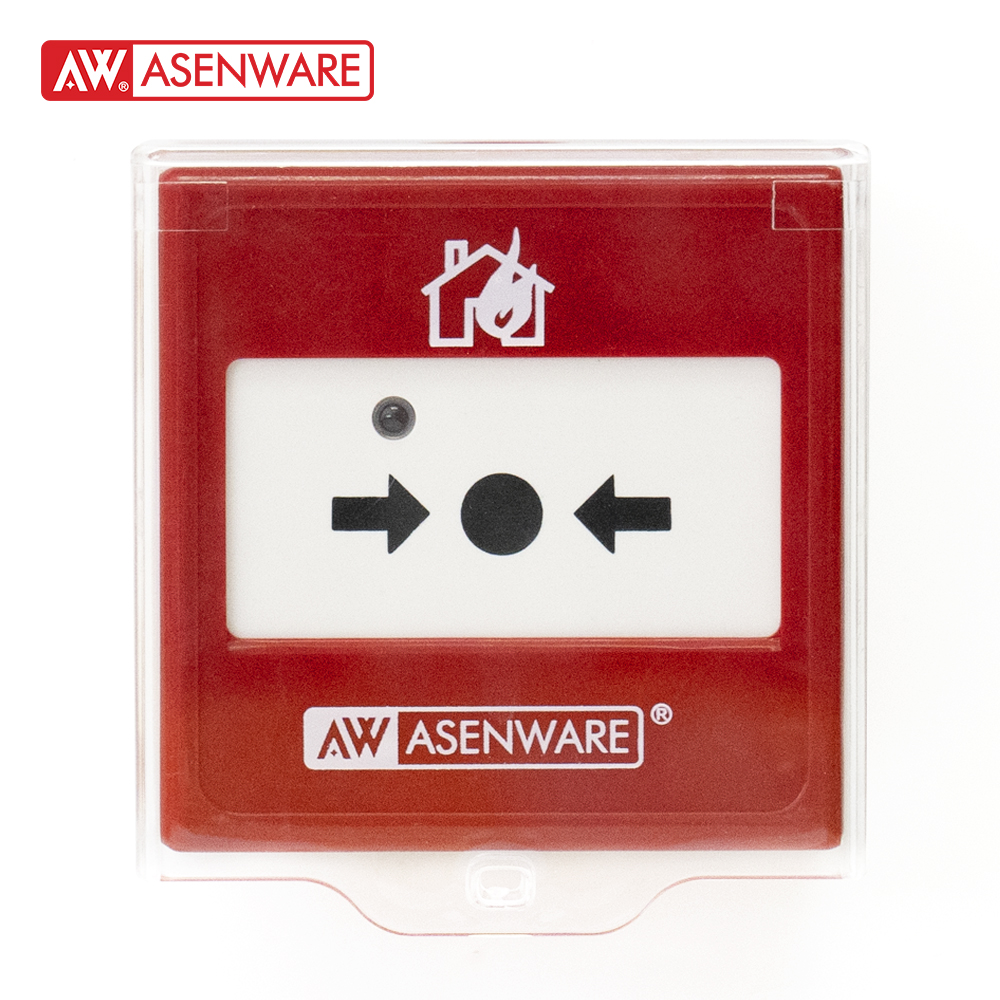

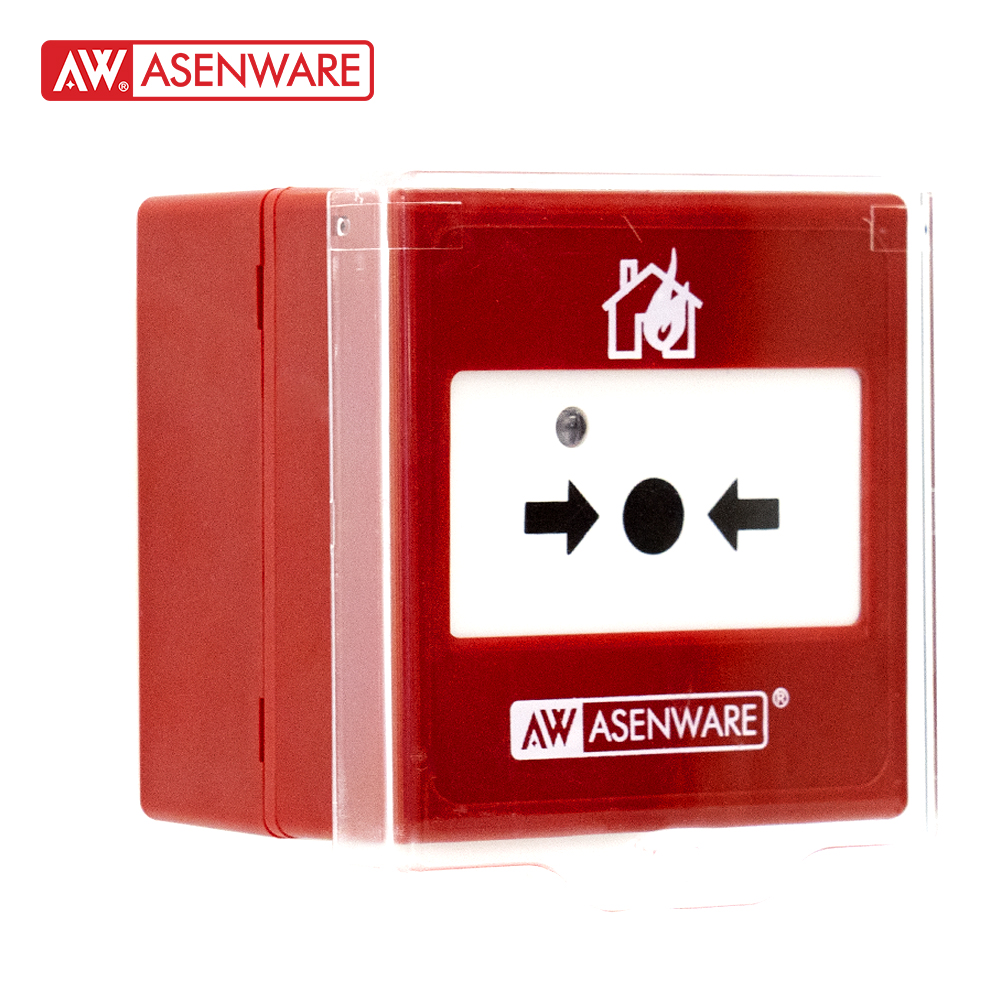

AW-D135W wirelessManual Pull Station is mainly designed to be use with a wireless control system. If it is pressed after a fire is manually confirmed, an alarm signal may be sent to a fire alarm control system which will, after receiving the alarm signal, display the coded address and the equipment status of the manual call points.
Product characteristics
1. Semi-flush or surface mounting
2. Lever reusable (non-glass break)
3. LED indicator
4. No wire connection(easy to install)
5. Full electronic coding, through AW-FR100 encoder scene rewrite
6. Compatible with the latest EN-11 standards
Technical Parameters
| Operating Voltage |
2 to 3VDC (with battery CR17450 or CR17330) |
| Operating Current |
Monitoring status≤20uA, alarm status≤100mA |
| Operating Frequency |
428MHz to 438MHz |
| Operating Temperature |
-10℃～55℃ |
| Relative Humidity |
≤95% (non-condensing) |
| Protection class |
IP30 |
| Application |
For indoor use only |
| Encoding |
Coded by the encoder, the address range from 1 to 250 optional |
| Materials and Color |
ABS, red |
Mounting base
AW-D135W Wireless Manual Pull Station should comply with all local codes. Shown in Figure 2, the first one base buried in the wall wheretheAW-D135W Wireless and then fixed to the middle cover of the base. Middle cover dimensions of 87mm*87mm*7mm(Length*Width*Height),mounting hole diameter φ5mm, fixing the holespacingis60mm～62.5mm, line pipe from the middle cover lower penetration into the line shown in Figure 3.
