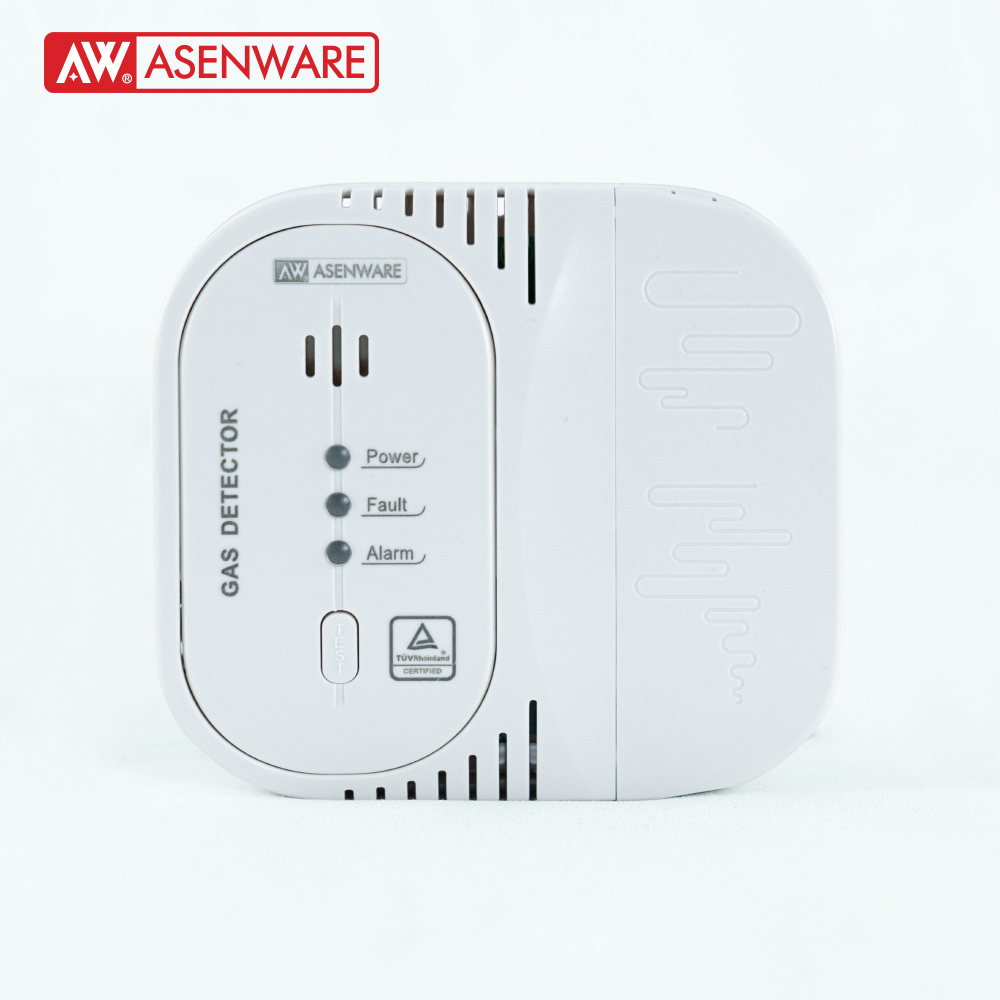

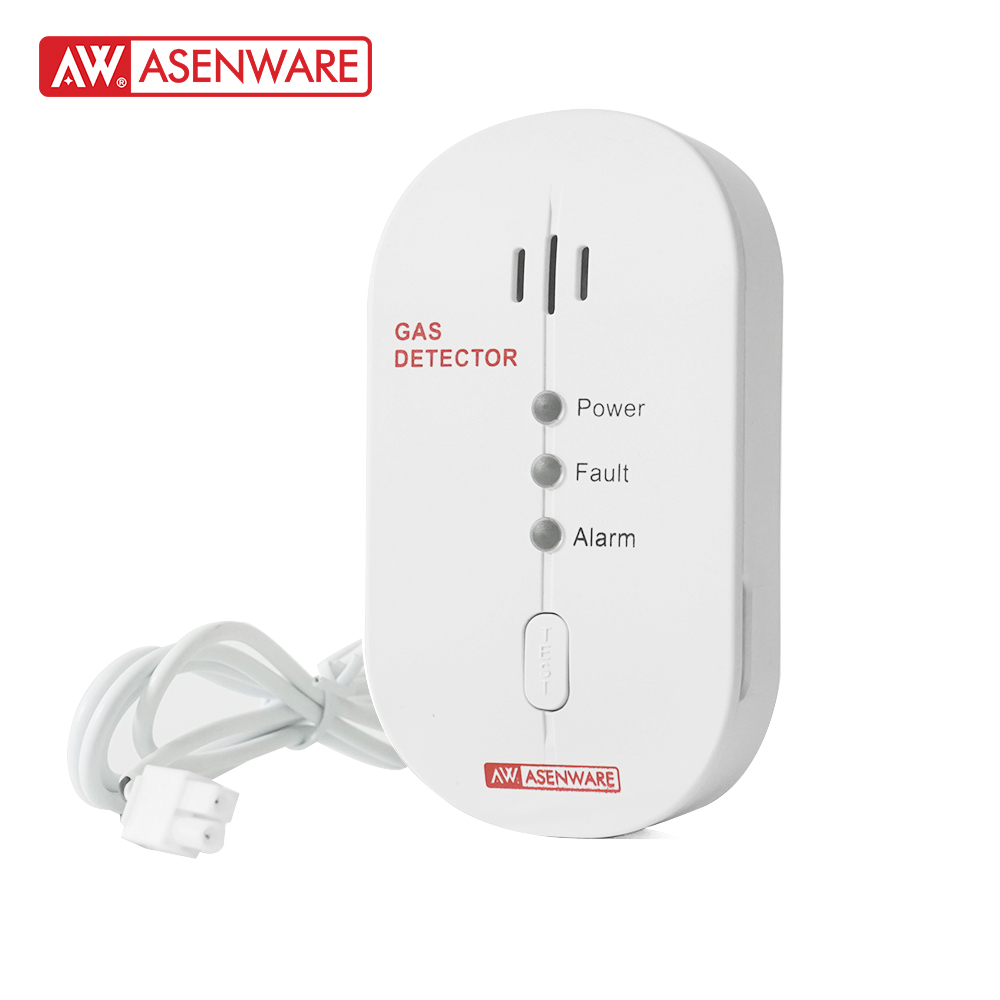

AW-D132 series detectors are designed for combustible gases detection. The product is small and compact, and the design and color are suitable for home use and small commercial properties. Valve and relay output will be provided when gas leakage reaches the alarm level. There are different kinds of models for different applications. LPG (Propane and Butane) orLNG (Methane) can be detected.
Product Features
1 LPG/LNG gas detection available
2 Loud 85 dB alarm and LED indicator warning light
3 Self-diagnostic function by MCU intelligent software
4 Excellent reliability &high stability
Technical Specification
| Operating Voltage |
DC 5V (With AC adaptor) |
| Detection Angle |
≤120° |
| Alarm SPL |
≥85dB @3m |
| Alarm in (Terminal) |
Dry Contact Input, relay/switch can be connected |
| Application |
Operates with addressable panel withwireless transmitter |
| Standard Number Ref |
EN50194-1:2009 |
